| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

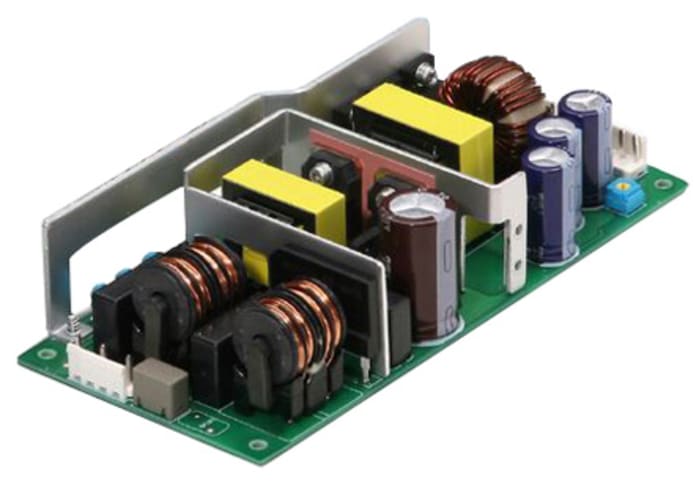

The Cosel LFA150F-36-Y is a chassis mount, open frame AC DC power supply designed for ITE (Commercial) applications. It offers a single output of 36V DC with a maximum current of 4.2A, providing a total power output of 151W.
This power supply operates with a universal input voltage range of 85-264 VAC and boasts an efficiency of 87.5%. It is built with safety and reliability in mind, featuring isolation voltage up to 3 kV and compliance with standards such as UL60950-1, C-UL, EN62368-1, FCC-B, and CISPR22-B.
The unit has a compact PCB construction and measures 160.0mm in length, 74.9mm in width, and 37.1mm in height. It operates within an ambient temperature range of -10°C to 70°C. The LFA series includes built-in protection circuits and meets harmonic attenuation requirements per IEC61000-3-2.
The Cosel LFA150F-36-Y provides a 36V DC output voltage.
The maximum output current for the LFA150F-36-Y is 4.2A.
This power supply has a power rating of 151W.
The LFA150F-36-Y accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for this unit is -10°C to 70°C.
The dimensions are 160.0mm in length, 74.9mm in width, and 37.1mm in height.
It complies with UL60950-1, C-UL(CSA60950-1), and EN62368-1 safety standards.
