| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Standard Number | |
| Type | |
| Voltage |

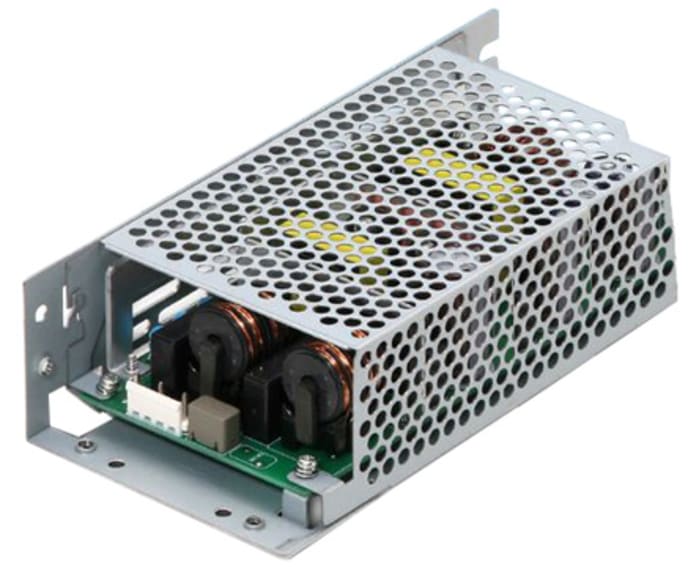

The Cosel LFA150F-36-SNY is a versatile AC/DC power supply designed for various applications. It operates with a universal input voltage range of 85V AC to 264V AC, making it suitable for global use. This enclosed unit delivers a stable 36V DC output at a maximum current of 4.2A, providing a total power of 151W.
Key electrical specifications include an efficiency rating of 87.5% and compliance with harmonic attenuator standards (IEC61000-3-2). The operating temperature range is from -10°C to 70°C, ensuring reliable performance in diverse environments. Safety approvals include CE, CSA, cURus, TUV, and UL, adhering to standards like 60950-1 and 62368-1.
Designed for chassis mounting, this power supply offers convenience in system integration. Its compact dimensions are 160.0mm in length, 74.9mm in width, and 37.1mm in height. The LFA series is known for its rugged PCB construction and built-in protection circuits for inrush current, overcurrent, and overvoltage.
The LFA150F-36-SNY provides a 36V DC output.
The maximum output current is 4.2A.
This unit has a power rating of 151W.
The input voltage range is 85V AC to 264V AC.
The operating temperature range is -10°C to 70°C.
This converter is designed for chassis mounting.
The dimensions are 160.0mm in length, 74.9mm in width, and 37.1mm in height.
