LFA150F-24-J1R2
Cosel
The Cosel LFA150F-24-J1R2 is an open frame AC DC converter with a 24V output and 0.5A current. It features universal AC input and a compact PCB construction.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

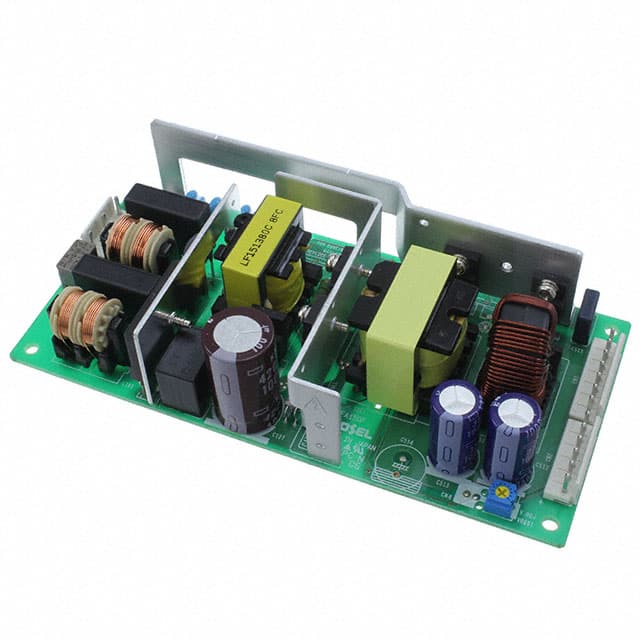

The Cosel LFA150F-24-Y is an AC/DC converter designed for ITE (Commercial) applications. This open frame unit features a chassis mount and provides a single 24VDC output with a current rating of 6.3A, delivering a maximum wattage of 150W.
Key electrical specifications include a universal input voltage range of AC85-264V and a typical efficiency of 87.5% at 200VAC input. The operating temperature range is -10°C to 70°C, making it suitable for various environmental conditions. The converter also boasts an isolation voltage of 3kV.
Designed with a compact PCB construction, it incorporates built-in protection circuits for inrush current, overcurrent, and overvoltage. Safety agency approvals include CE, CSA, cURus, TUV, and UL, with compliance to standards like IEC60950-1 and IEC62368-1.
This power supply is manufactured using SMD technology and requires careful handling to prevent defects caused by PCB stress. It is important to ensure necessary tests are carried out on your end equipment with this power supply installed to meet required EMC/EMI regulations.
The output voltage is 24 VDC.
The input voltage range is 85-264 VAC.
The maximum output wattage is 150 W.
The operating temperature range is -10°C to 70°C.
The mounting type is chassis mount.
It complies with IEC 60950-1 and IEC 62368-1.
