| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

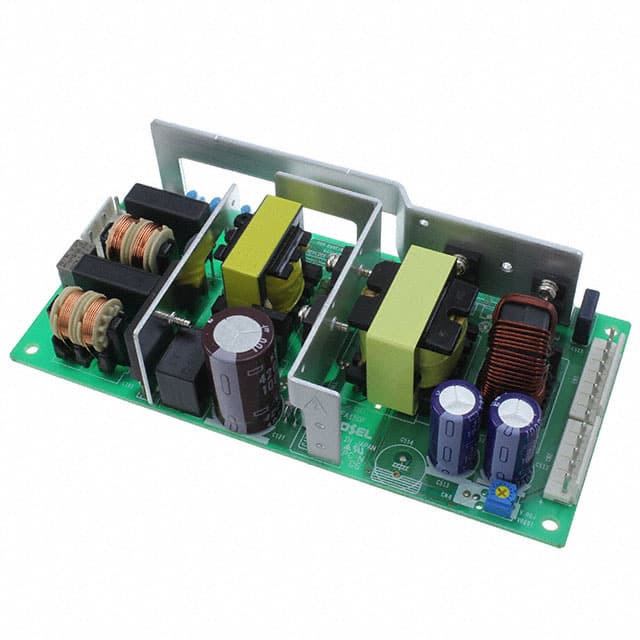

The Cosel LFA150F-15-Y is an AC/DC converter designed for ITE (Commercial) applications. It features an open-frame construction and chassis mount type, making it suitable for integration into various equipment.
This converter provides a single output of 15V with a maximum current of 0.7A, delivering up to 10.5W of power. It operates with a universal input voltage range of AC85-264V and boasts a high efficiency of up to 86.5% at ACIN 200V.
Key electrical specifications include line regulation of 60mV maximum and load regulation of 120mV maximum. The operating temperature range is -10°C to 70°C. Safety approvals include CE, CSA, cURus, TUV, and UL, complying with standards like IEC60950-1 and IEC62368-1.
Additional features include built-in inrush current, overcurrent, and overvoltage protection circuits. It also complies with harmonic attenuator standards (IEC61000-3-2) and EMI standards such as FCC-B and CISPR22-B.
The converter accepts a universal AC input voltage ranging from 85 to 264 VAC.
It provides a regulated 15 VDC output capable of delivering up to 0.7 A.
The unit is rated for continuous operation within an ambient temperature range of -10°C to 70°C.
It features an open frame construction designed specifically for chassis mounting.
Yes, the LFA150F-15-Y incorporates built-in power factor correction to improve energy efficiency.
The device carries CE, CSA, cURus, TUV, and UL approval agencies for global compliance.
The chassis mount enclosure measures 160.0 mm in length, 74.9 mm in width, and 37.1 mm in height.
