| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

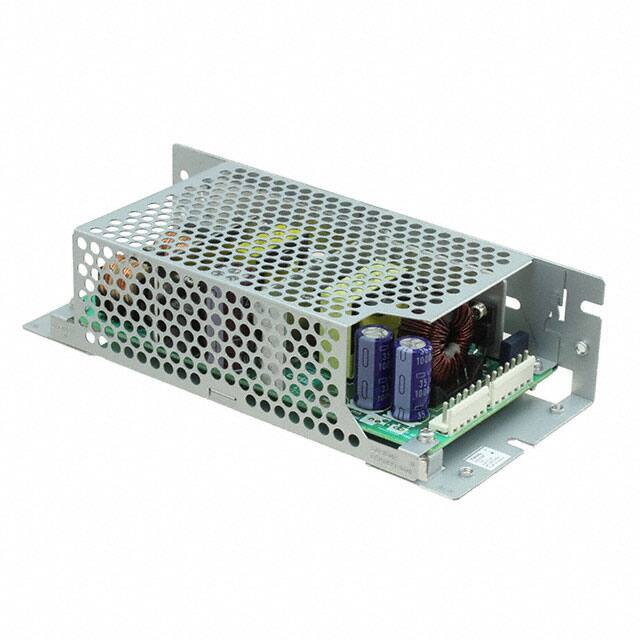

The Cosel LFA150F-15-SN is a versatile AC-DC power supply designed for ITE (Commercial) applications. This enclosed unit offers a single 15VDC output capable of delivering up to 10A, with a maximum power rating of 150W. It accepts a wide universal input voltage range from 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include a typical efficiency of 86.5% at 200VAC input. The operating temperature range is -10°C to 70°C, providing flexibility for various environments. The power supply meets safety standards such as UL60950-1 and EN62368-1, indicated by its approval agencies including CE, CSA, cURus, TUV, and UL.
Designed for easy integration, this model features a chassis mount type. Its dimensions are 160.0mm in length, 74.9mm in width, and 37.1mm in height. The LFA150F-15-SN also includes built-in protection circuits for inrush current, overcurrent, and overvoltage, enhancing system reliability. It complies with EMI standards such as FCC-B and CISPR22-B.
85-264 VAC.
Chassis mount, enclosed.
-10°C to 70°C.
15 VDC at 10 A.
150 W.
IEC 60950-1 and IEC 62368-1.
ITE (Commercial) equipment.
