| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Industrial Grade | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

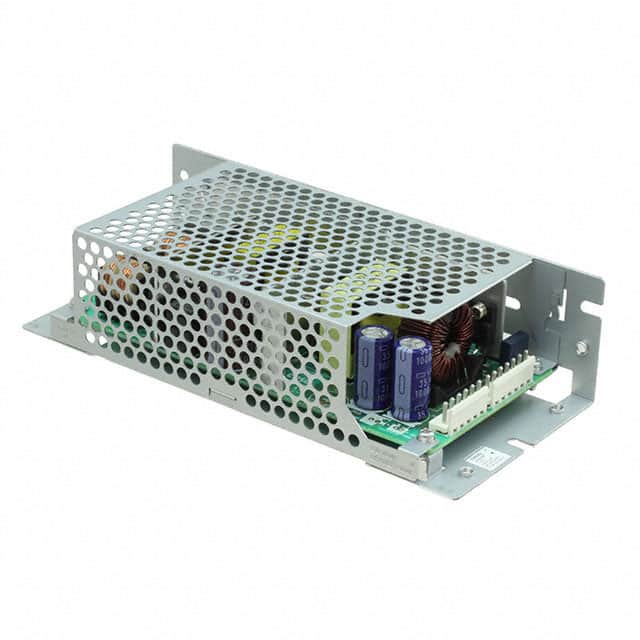

The Cosel LFA150F-12-SNY is a robust AC DC power supply designed for ITE (Commercial) applications. This enclosed unit offers a single 12VDC output capable of delivering up to 12.5A, with a maximum wattage of 150W. It accepts a wide universal input voltage range of 85-264 VAC, making it suitable for global use.
Designed for reliable operation, the LFA150F-12-SNY features a typical efficiency of 83.0% at 200V AC input. It operates within an ambient temperature range of -10°C to 70°C and provides an isolation voltage of 3 kV. The converter meets safety standards including UL60950-1 and EN62368-1.
This model is designed for chassis mounting, offering a secure and stable installation in various equipment. Its dimensions are 160.0mm in length, 74.9mm in width, and 37.1mm in height. The LFA150F-12-SNY is built with PCB construction and includes built-in protection circuits for inrush current, overcurrent, and overvoltage.
The output voltage is 12VDC.
The maximum output current is 12.5A.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C.
It is a chassis mount type.
The dimensions are 160.0mm (L) x 74.9mm (W) x 37.1mm (H).
