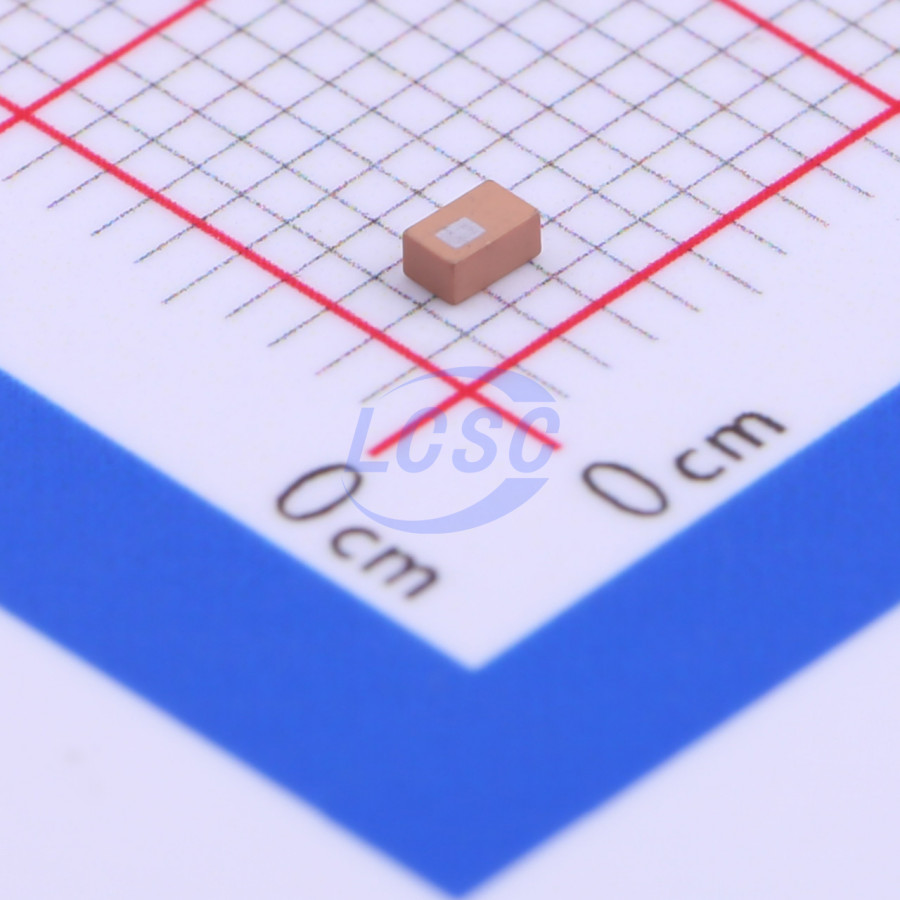

LF2012-L1R4NAA The ACX LF2012-L1R4NAA is a fixed inductor with dimensions 2.0 x 1.25 x 0.95 mm. It operates within a frequency range of 800-1000, 1700-1910, and 2010-2025 MHz.
Mfr Part #:

LF2012-L1R4NAA

Available from 1 distributors
Mfr Name: ACX
ACX
The ACX LF2012-L1R4NAA is a fixed inductor with dimensions 2.0 x 1.25 x 0.95 mm. It operates within a frequency range of 800-1000, 1700-1910, and 2010-2025 MHz.
✓ Total Stock: 2,241 pcs

LF2012-L1R4NAA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,241 pcs
On Request
2241 pcs On Request 1 On Request On Request 2015 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LF2012-L1R4NAA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Frequency
Mounting Type
Package / Case
SVHC Present
View Similar Products (0)

LF2012-L1R4NAA Description

Short technical summary and product information.

The ACX LF2012-L1R4NAA is a fixed inductor designed for various electronic applications. It features a compact size with dimensions of 2.0 x 1.25 x 0.95 mm, making it suitable for space-constrained designs.



This inductor operates across multiple frequency bands, including 800-1000 MHz, 1700-1910 MHz, and 2010-2025 MHz. It offers a maximum insertion loss of 0.5 dB for Band 1, 0.8 dB for Band 2, and 1.5 dB for Band 3, ensuring efficient signal processing.



The LF2012-L1R4NAA is designed for surface mount applications, facilitating automated assembly processes. Its robust construction and reliable performance make it a suitable choice for RF circuits and other demanding applications.

LF2012-L1R4NAA Quick Information

Product Type: Fixed Inductor
Series: LF2012
Canonical Name: ACX LF2012-L1R4NAA Fixed Inductor
Subcategory: Fixed Inductors

LF2012-L1R4NAA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LF2012-L1R4NAA Features

  • Fixed inductor with 2.0 x 1.25 x 0.95 mm dimensions.
  • Operates across multiple frequency bands.
  • Maximum insertion loss up to 1.5 dB.
  • Surface mountable for automated assembly.
  • RoHS3 compliant for environmental standards.

LF2012-L1R4NAA Applications

  • Suitable for RF signal processing.
  • Ideal for compact electronic devices.
  • Used in telecommunication systems.
  • Applicable in wireless modules.

LF2012-L1R4NAA FAQs

6 frequently asked questions generated from this part’s specifications.
What are the dimensions of the ACX LF2012-L1R4NAA inductor?

The dimensions are 2.0 x 1.25 x 0.95 mm.

What is the frequency range for the LF2012-L1R4NAA?

The frequency range is 800-1000 MHz, 1700-1910 MHz, and 2010-2025 MHz.

What is the maximum insertion loss for this inductor?

The maximum insertion loss is 0.5 dB for Band 1, 0.8 dB for Band 2, and 1.5 dB for Band 3.

Is the ACX LF2012-L1R4NAA RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.

Does the LF2012-L1R4NAA meet REACH requirements?

Yes, it is REACH Unaffected.
