| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,075 pcs
|
2075 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| SVHC Present | |
| Supply Voltage | |
| Thermal Resistance |
The Texas Instruments LF156H/883 is a monolithic JFET input operational amplifier utilizing BI-FET™ Technology. It integrates well-matched, high-voltage JFETs with standard bipolar transistors on a single chip.
This amplifier is designed for high-speed performance, featuring a wide gain bandwidth of 5MHz, a fast slew rate of 12V/µs, and an extremely fast settling time to 0.01% of 1.5µs. It exhibits low input bias and offset currents (30pA and 3pA respectively) and a very high input impedance of 10 TΩ.
Key electrical characteristics include a high common-mode rejection ratio of 100 dB and a large DC voltage gain of 106 dB. The device is suitable for applications requiring low noise, such as precision high-speed integrators, fast D/A and A/D converters, and high impedance buffers.

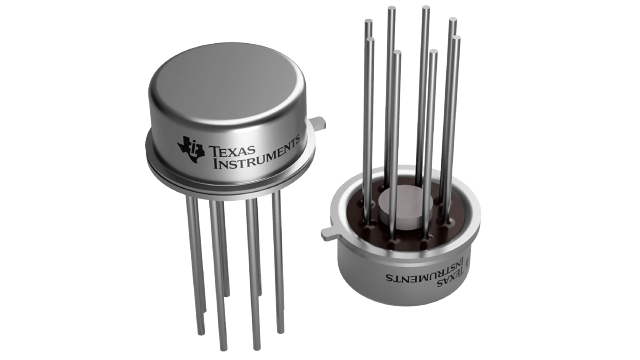

The LF156H/883 comes in an 8-lead Metal Can package (TO-CAN). Its design allows for the use of large capacitive loads up to 5,000 pF without stability issues. The operating temperature range is -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.01 | $26.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is ±22V.
The slew rate is 12V/µs.
The settling time to 0.01% is 1.5µs.
The input impedance is 10 TΩ.
The operating temperature range is -55°C to 125°C.
The LF156H/883 is available in an 8-lead TO-CAN Metal Can package.
