| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

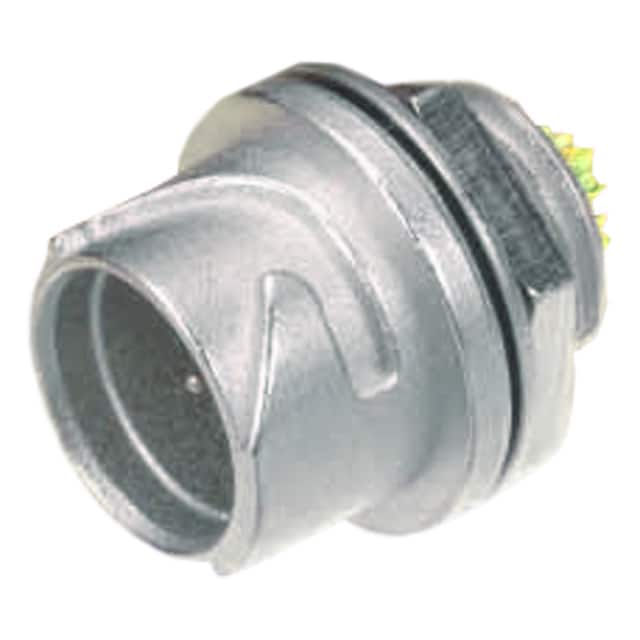

The LF13WBR-20S is a circular connector receptacle from Hirose Electric, designed for reliable signal and power connections in demanding environments. It features 20 female socket contacts arranged in a metal shell with a bayonet locking mechanism, ensuring secure mating. The connector offers a solder cup termination style, simplifying field wiring without specialized tooling.
The shell is constructed from zinc alloy with a nickel finish, providing corrosion resistance and durability. The contact finish is gold-plated for low resistance and high reliability. The connector is rated for 2A current per contact and supports voltage up to 30VAC or 42VDC, making it suitable for various industrial and instrumentation applications. The operating temperature range is -25°C to 85°C.
Designed for panel mounting with a bulkhead (rear side nut) feature, the LF13WBR-20S achieves IP67/IP68 ingress protection ratings, making it dust-tight and waterproof. This ruggedized connector is ideal for harsh environments where moisture and dust are present, such as outdoor equipment, marine systems, and factory automation. The keyed orientation prevents incorrect mating, ensuring proper alignment during installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.70 | $23.70 |
| 10+ | $20.15 | $20.15 |
| 25+ | $18.89 | $18.89 |
| 50+ | $18.88 | $18.88 |
| 100+ | $17.70 | $17.70 |
| 250+ | $16.59 | $16.59 |
| 500+ | $15.84 | $15.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 20 positions (female sockets).
Each contact is rated for 2A.
It is rated for 30VAC and 42VDC.
It is a panel mount connector with a bulkhead (rear side nut) mounting feature.
It is rated IP67 and IP68, meaning dust-tight and waterproof.
The shell is made of zinc alloy with a nickel finish.
The operating temperature range is -25°C to 85°C.
