| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,380 pcs
|
22380 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance (Typical @ 10 MHz) | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Peak Impedance Frequency | |
| Tape & Reel | |
| Tape and Reel | |
| Typical Peak Impedance(Ω) | |
| Width | |
| impedance (Typical @ 100 MHz) | |
| impedance (Typical @ 500 MHz) |

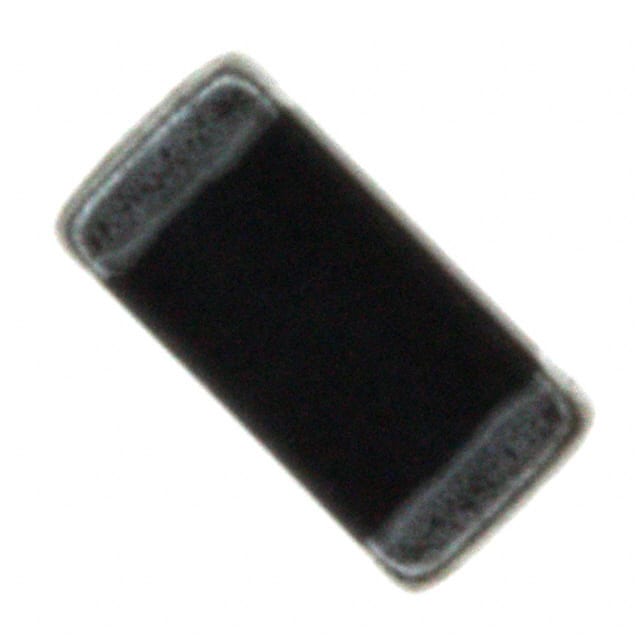

The Laird Technologies LF1206A302R-10 is a ferrite chip bead suitable for both power and signal line applications. It is housed in a compact 1206 (3216 Metric) surface mount package.
This component offers a typical impedance of 760 Ohms at 100 MHz and 3000 Ohms at 10 MHz, with a peak impedance frequency of 19 MHz. It has a maximum DC resistance of 1.05 Ohms and a maximum current rating of 100mA.
The operating temperature range for this ferrite bead is from -40°C to 125°C. It is designed for surface mounting and comes in a tape and reel package for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the LF1206A302R-10 at 100 MHz is 760 Ohms.
The operating temperature range for the LF1206A302R-10 is -40°C to 125°C.
The maximum current rating for the LF1206A302R-10 is 100mA.
The LF1206A302R-10 is available in the 1206 (3216 Metric) package size.
Yes, the LF1206A302R-10 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LF1206A302R-10 is 1 Unlimited.
