| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

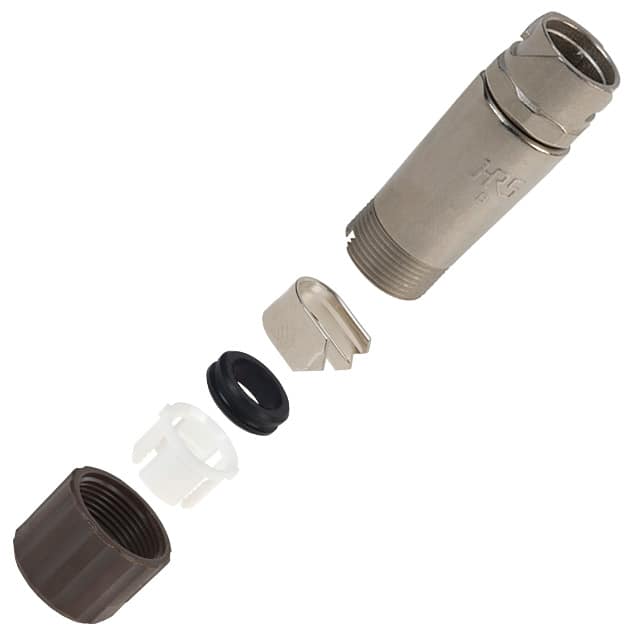

The LF10WBJ-4P is a circular connector assembly from Hirose Electric. It features a jack male pin configuration with 4 positions and a shell size of 10. The connector is designed for free hanging (in-line) mounting with solder cup termination. A bayonet lock provides secure fastening, and the keyed orientation ensures correct alignment during mating.
Constructed with a metal shell made of zinc alloy and finished with nickel, the connector is shielded for EMI protection. Contacts are gold plated for reliable conductivity and corrosion resistance. The connector is rated for ingress protection IP67/IP68, making it dust tight and waterproof suitable for harsh environments.
Electrically, it supports a current rating of 10 A and a voltage rating of 125 VAC/DC. The operating temperature range is -25°C to 85°C. The material flammability rating is UL94 V-0. Additional features include a backshell, clamp, and strain relief for cable management.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.04 | $22.04 |
| 10+ | $18.74 | $18.74 |
| 25+ | $17.57 | $17.57 |
| 50+ | $16.72 | $16.72 |
| 100+ | $15.92 | $15.92 |
| 250+ | $15.58 | $15.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
Free Hanging (In-Line).
10 A.
125 VAC/DC.
IP67/IP68 - Dust Tight, Waterproof.
-25°C to 85°C.
Zinc alloy shell with nickel finish.
