| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135 pcs
|
135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating DC |

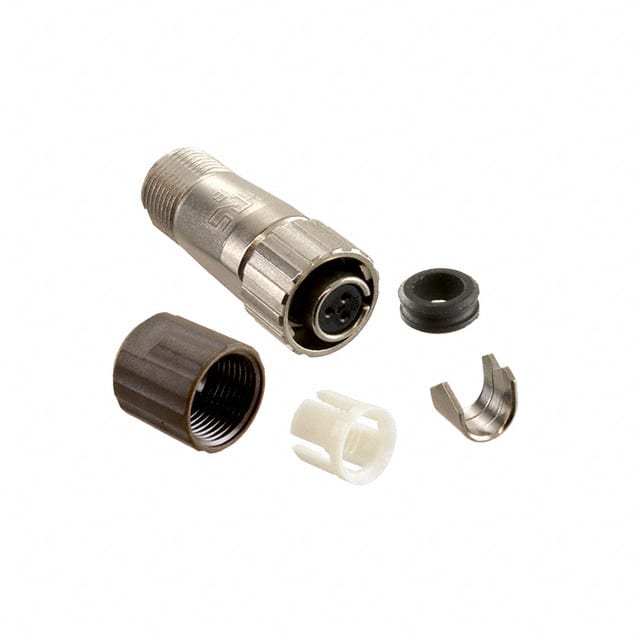

The Hirose Electric LF07WBP-3S(31) is a 3-position circular connector plug designed for reliable signal and power connections in harsh environments. It features female sockets with gold-plated contacts for low resistance and corrosion resistance. The connector uses a bayonet lock fastening system for secure mating and quick disconnect. Termination is via solder cups, suitable for cable assembly. The shell is made of zinc alloy with a nickel finish, providing durability and shielding. The connector is keyed for proper orientation and includes a backshell, cable clamp, coupling nut, and strain relief. Cable opening is 0.197 inches (5.00mm). Electrical ratings include 5A current and 125VAC/175VDC voltage. Operating temperature range is -25°C to 85°C. The connector is rated IP67/IP68 for dust tightness and waterproofing. Material flammability rating is UL94 V-0. Compliance with RoHS3 and REACH is claimed but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.60 | $18.60 |
| 10+ | $15.81 | $15.81 |
| 25+ | $14.82 | $14.82 |
| 50+ | $14.10 | $14.10 |
| 100+ | $13.43 | $13.43 |
| 250+ | $12.93 | $12.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
5A.
125VAC and 175VDC.
Free hanging (in-line).
IP67/IP68.
-25°C to 85°C.
Solder cup.
