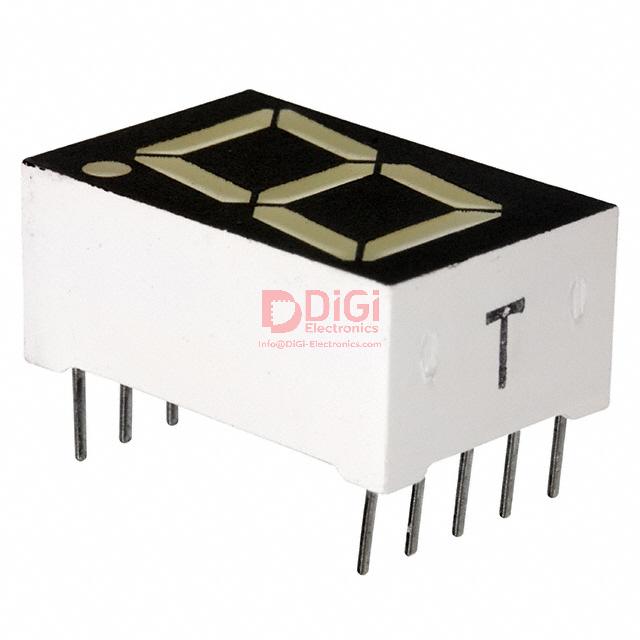

LF-301VA The ROHM Semiconductor LF-301VA is a single-digit, 7-segment red LED display with a digit height of 0.31 inches. It operates at 2V and 10mA, providing a luminous intensity of 10mcd.
Mfr Part #:

LF-301VA

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor LF-301VA is a single-digit, 7-segment red LED display with a digit height of 0.31 inches. It operates at 2V and 10mA, providing a luminous intensity of 10mcd.
✓ Total Stock: 793 pcs
$ Price Range: $0.99

LF-301VA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
793 pcs
On Request
793 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LF-301VA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Millicandela Rating
Mounting Type
Number of Characters
Operating Temperature
Power Dissipation (Max)
Storage Temperature
Voltage
Wavelength
View Similar Products (0)

LF-301VA Description

Short technical summary and product information.

The ROHM Semiconductor LF-301VA is a single-digit, 7-segment LED display designed for surface mount applications. It features a digit height of 0.31 inches (8.00mm) and a red emitting color.



This display operates with a typical forward voltage of 2V and a forward current of 10mA, delivering a luminous intensity of 10mcd. The maximum power dissipation is rated at 40mW. The peak wavelength for the red emission is 650nm.



Designed for automated assembly, the LF-301VA supports re-flow soldering and automatic mounting with taping. It has a common anode configuration and is packaged in a 10-SMD, No Lead format. The operating temperature range is -25°C to +75°C, and the storage temperature range is -30°C to +85°C.

LF-301VA Quick Information

Product Type: LED Character and Numeric Display
Series: LF-301 A / K Series
Canonical Name: ROHM Semiconductor LF-301VA Single Digit 7-Segment Red LED Display
Subcategory: Single Digit Display

LF-301VA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LF-301VA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LF-301VA Features

  • Single digit, 7-segment red LED display.
  • 0.31 inch (8.00mm) digit height.
  • Typical 2V forward voltage.
  • 10mA typical forward current.
  • Surface mount 10-SMD package.

LF-301VA Applications

  • Ideal for indicator readouts.
  • Suitable for panel meters.
  • Used in control interfaces.
  • Component in electronic devices.

LF-301VA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the digit height of the LF-301VA display?

The digit height of the LF-301VA display is 0.31 inches (8.00mm).

What color is the LF-301VA LED display?

The LF-301VA LED display is red.

What is the typical forward voltage for the LF-301VA?

The typical forward voltage for the LF-301VA is 2V.

What is the typical forward current for the LF-301VA?

The typical forward current for the LF-301VA is 10mA.

What is the luminous intensity of the LF-301VA display?

The luminous intensity of the LF-301VA display is 10 mcd.

What is the operating temperature range for the LF-301VA?

The operating temperature range for the LF-301VA is -25°C to +75°C.

What is the package type for the LF-301VA?

The LF-301VA is supplied in a 10-SMD, No Lead package.
