Mfr Part #:

LESD5Z5.0T1G

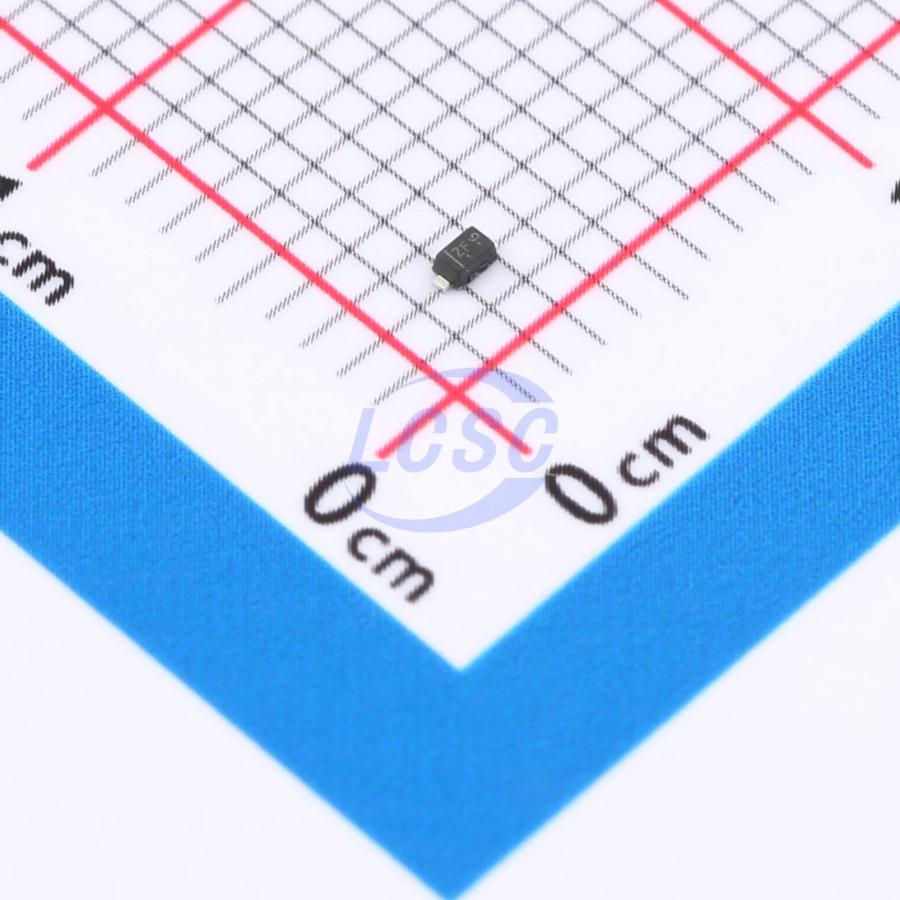

The LESD5Z5.0T1G is a unidirectional TVS Diode from LRC Leshan Radio Co Ltd. It offers a 5V stand-off voltage and 1A peak pulse current.

✓ Total Stock: 750 pcs

LESD5Z5.0T1G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	750 pcs On Request	750 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LESD5Z5.0T1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	LRC Leshan Radio Co Ltd
Mounting Type	Surface Mount
Operating Temperature	-55°C / 150°C
Package / Case	DO-214AC, SMA
Storage Temperature	-55°C / 150°C

View Similar Products (0)

LESD5Z5.0T1G Description

Short technical summary and product information.

The LESD5Z5.0T1G is a unidirectional Transient Voltage Suppressor (TVS) diode manufactured by LRC Leshan Radio Co Ltd. This component is designed for circuit protection applications, offering a stand-off voltage of 5V and a breakdown voltage of 5.8V at 1mA.

With a peak pulse current rating of 1A (10/1000μs), the LESD5Z5.0T1G provides a maximum clamping voltage of 9.5V when subjected to this current. It operates within a wide temperature range, from -55°C to 150°C for both operating and storage conditions.

The TVS diode is housed in a DO-214AC, SMA package, suitable for surface mount applications. Its robust design makes it a reliable choice for safeguarding sensitive electronic circuits against transient voltage events.

LESD5Z5.0T1G Quick Information

Product Type: TVS Diode

Series: LESD5Z5.0T1G

Canonical Name: LESD5Z5.0T1G Unidirectional TVS Diode

Subcategory: Transient Voltage Suppressor

LESD5Z5.0T1G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LESD5Z5.0T1G Features

Unidirectional TVS diode for circuit protection.
5V stand-off voltage.
1A peak pulse current capability.
9.5V maximum clamping voltage.
Surface mount DO-214AC, SMA package.

LESD5Z5.0T1G Applications

Protects sensitive electronic circuits.
Suitable for transient voltage suppression.
Used in various industrial applications.
Ideal for compact designs.
