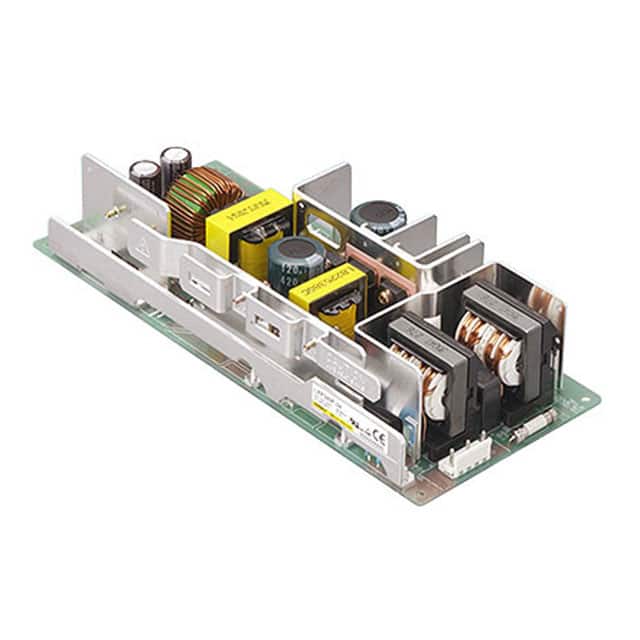

This Cosel LEP240F-24 is an open frame AC DC power supply designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 10A, providing a total power of 240W.
The converter features a wide input voltage range of 85 to 264 VAC, making it suitable for global use. Its efficiency is rated at 86%, and it includes features like DC input capability and universal input. The unit is designed for chassis mounting and has dimensions of 222.0mm x 95.0mm x 45.0mm.
Key approvals include CE, cURus, and TUV, ensuring compliance with various safety standards. The operating temperature range is -10°C to 70°C, with derating applied. Voltage isolation is rated at 3kV. This model requires no minimum load.
It is suitable for applications requiring a reliable and efficient power source in commercial and industrial settings. The open frame construction allows for easy integration into custom enclosures or equipment designs.
The output voltage is 24V and the maximum output current is 10A.
The input voltage range is 85 to 264 VAC.
The efficiency is 86%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 222.0mm x 95.0mm x 45.0mm (8.74" x 3.74" x 1.77").
No, the LEP240F-24 does not require a minimum load.
It is approved by CE, cURus, and TUV.
