| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 01+03 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Rated Current | |
| Test Frequency | |
| Tolerance |

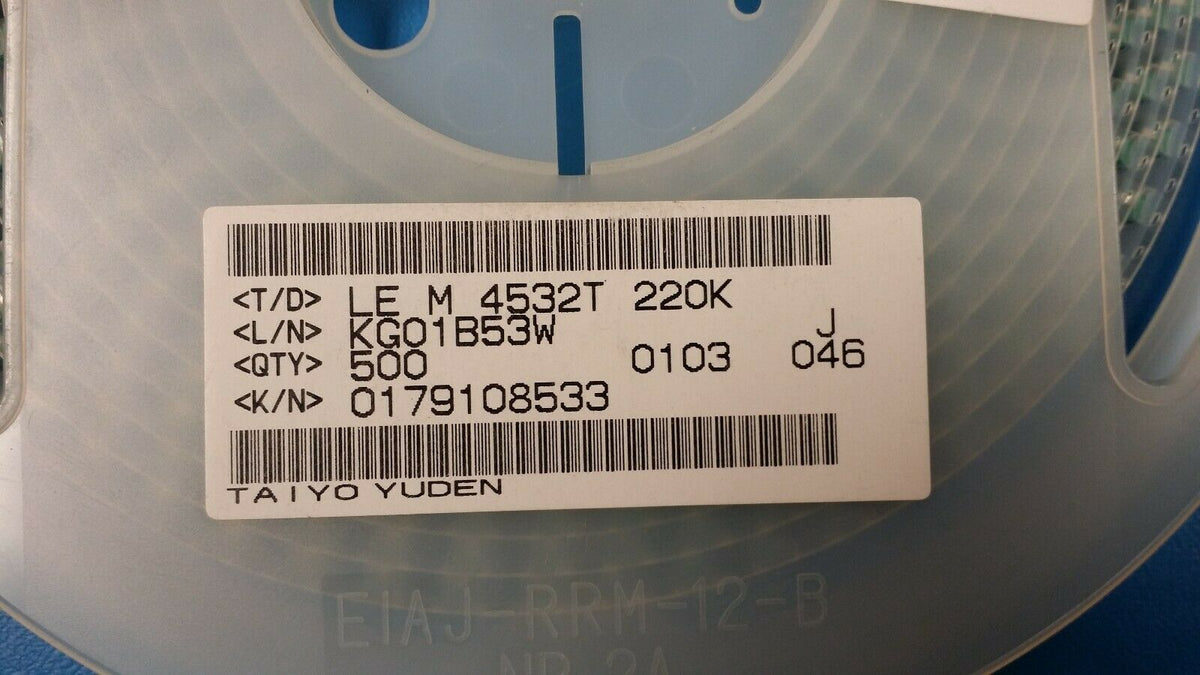

This Taiyo Yuden LEM4532T220K is a general purpose fixed inductor designed for surface mount applications. It offers a nominal inductance of 22µH with a tolerance of 10%. The inductor has a rated current of 0.2A and a DC resistance of 1.2 ohm.
Featuring a rectangular package with dual-ended J-bend terminals, this component is suitable for RF inductor applications. It operates within a temperature range of -25°C to 85°C and has a minimum quality factor of 40 at its nominal inductance. The self-resonance frequency is 16 MHz.
This part is classified as a fixed inductor and is manufactured by Taiyo Yuden. Its surface mount design and specific electrical characteristics make it suitable for various electronic circuits requiring stable inductance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance of the LEM4532T220K is 22µH.
The tolerance for the LEM4532T220K inductor is ±10%.
The DC resistance of the LEM4532T220K is 1.2 ohm.
The maximum rated current for this inductor is 0.2A.
The self-resonance frequency of the LEM4532T220K is 16 MHz.
The operating temperature range is from -25°C to 85°C.
The LEM4532T220K is a general purpose inductor.
