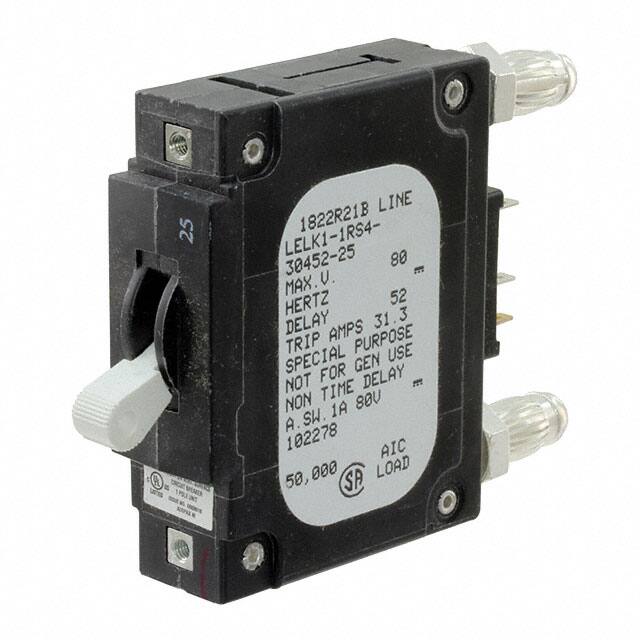

LELK1-1RS4-30452-25 The Sensata LELK1-1RS4-30452-25 is a single-pole, magnetic-hydraulic delay circuit breaker. It features a panel mount design and a lever actuator.
Mfr Part #:

LELK1-1RS4-30452-25

Mfr Name: Sensata
Sensata
The Sensata LELK1-1RS4-30452-25 is a single-pole, magnetic-hydraulic delay circuit breaker. It features a panel mount design and a lever actuator.
Stock on Request

LELK1-1RS4-30452-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

LELK1-1RS4-30452-25 Description

Short technical summary and product information.

This Sensata LELK1-1RS4-30452-25 is a single-pole circuit breaker designed for panel mounting. It operates with a magnetic-hydraulic delay mechanism, providing reliable protection.



The breaker has a current rating of 25A and a voltage rating of 80V. It is approved by UL489, indicating compliance with relevant safety standards. The actuator type is a lever, allowing for easy operation.



Key specifications include a 1-pole configuration and a magnetic-hydraulic delay type. The mounting is designed for panels, making it suitable for integration into various electrical enclosures and systems. This component is RoHS3 compliant and has an MSL of 1.

LELK1-1RS4-30452-25 Quick Information

Product Type: Circuit Breaker
Canonical Name: Sensata LELK1-1RS4-30452-25 Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

LELK1-1RS4-30452-25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LELK1-1RS4-30452-25 Features

  • 25A current rating for protection.
  • 80V voltage rating for power systems.
  • Panel mount design for integration.
  • Lever actuator for operation.
  • Magnetic-hydraulic delay type.

LELK1-1RS4-30452-25 Applications

  • Used in industrial control panels.
  • Provides overcurrent protection for equipment.
  • Suitable for power distribution systems.
  • Ideal for branch circuit protection.
  • Applied in commercial electrical installations.

LELK1-1RS4-30452-25 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the LELK1-1RS4-30452-25?

80V.

What is the current rating?

25A.

What is the mounting type?

Panel mount.

What type of actuator does it have?

Lever.

How many poles does it have?

1 pole.

What is the breaker type?

Magnetic (Hydraulic Delay).

What approvals does it have?

UL489.
