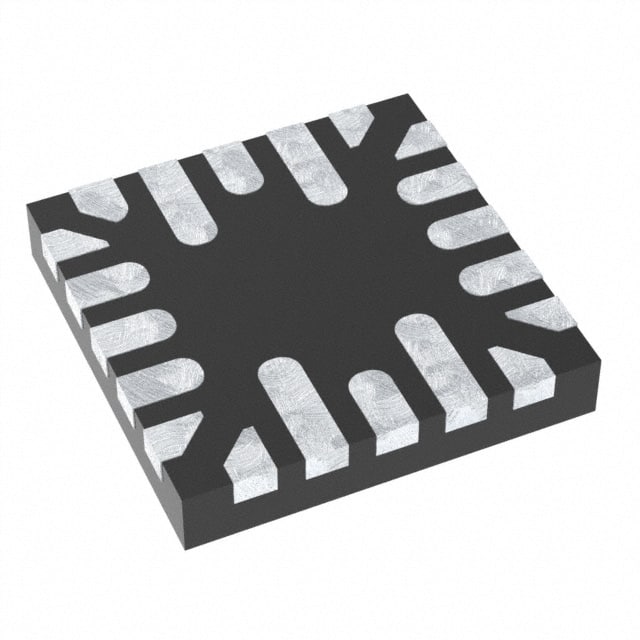

LED1202QTR The STMicroelectronics LED1202QTR is an analog LED driver controller designed for LED lighting applications. It features 12 independent channels with 20mA output per channel.
Mfr Part #:

LED1202QTR

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics LED1202QTR is an analog LED driver controller designed for LED lighting applications. It features 12 independent channels with 20mA output per channel.
✓ Total Stock: 12,426 pcs
$ Price Range: $0.17

LED1202QTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,426 pcs
On Request
4426 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LED1202QTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Frequency
Internal Switch(s)
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Supplier Device Package
Type
Voltage
View Similar Products (0)

LED1202QTR Description

Short technical summary and product information.

The STMicroelectronics LED1202QTR is a power management integrated circuit (PMIC) functioning as an analog LED driver controller. It is engineered to manage 12 independent LED channels, providing precise current control of up to 20mA per channel. This device operates with an input supply voltage ranging from 2.6V to 5V and features a DC-DC controller topology.



Designed for applications requiring analog dimming, the LED1202QTR offers smooth brightness control. Its switching frequency is 400kHz, and it operates within a temperature range of -40°C to 85°C. The controller does not include internal switches, necessitating external components for switching functionality.



This LED driver is housed in a compact 20-QFN (3x3mm) package, making it suitable for space-constrained designs. Its primary application is in LED lighting, including backlighting for displays, architectural lighting, and automotive interior lighting. The device is surface-mount compatible.



Key specifications include a 2.6V to 5V input voltage, up to 5V output voltage, 12 output channels, 20mA current per channel, and a 400kHz switching frequency. It operates from -40°C to 85°C and supports analog dimming.

LED1202QTR Quick Information

Product Type: LED Driver
Canonical Name: STMicroelectronics LED1202QTR Analog LED Driver Controller
Subcategory: PMIC

LED1202QTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 3 (168 hours)
REACH Status: REACH Unaffected

LED1202QTR Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

LED1202QTR Features

  • Drives 12 independent LED channels.
  • Provides 20mA output per channel.
  • Supports analog dimming for brightness control.
  • Operates from 2.6V to 5V supply.
  • Compact 20-QFN (3x3mm) package.

LED1202QTR Applications

  • Ideal for LED backlighting.
  • Suitable for architectural lighting.
  • Used in automotive interior lighting.
  • General LED lighting controls.

LED1202QTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input supply voltage range?

2.6V to 5V.

What is the output voltage?

5V.

What package does the LED1202QTR come in?

20-QFN (3x3) and 20-UFQFN.

What is the operating temperature range?

-40°C to 85°C.

How many outputs does the LED1202QTR have?

12 outputs.

What is the output current per channel?

20mA.

What is the switching frequency?

400kHz.
