| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Depth | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power Rating | |
| Type | |
| Voltage | |
| Weight | |
| Width |

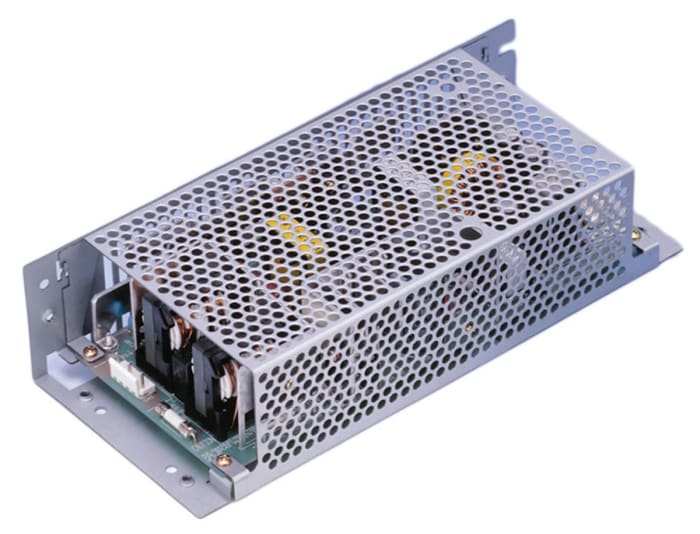

The Cosel LEB225F-0512-SN is an enclosed, chassis-mount AC/DC switching power supply from the LEB series. It offers dual outputs of 5V dc and 12V dc, delivering a total power of 145W and a maximum current of 10A per output.
With a universal input voltage range of 85-264V AC, this power supply is versatile for various applications. It boasts an efficiency of 77% to 79% and operates within a temperature range of -10°C to +70°C. The unit dimensions are 58mm in width, 108mm in depth, and it weighs 700g.
Key features include power factor correction, optional remote ON/OFF, and comprehensive protection against overcurrent, overvoltage, thermal, and peak current. The LEB series is known for its high reliability, with a field failure rate of less than 0.012%.
This power supply complies with standards such as UL60950-1, cUL, EN60950-1, and EN50178. Conducted noise complies with FCC-B, CISPR22-B, EN55022-B, and VCCI-B. It is suitable for ITE (Commercial) applications.
The converter provides dual outputs: 5 V dc and 12 V dc.
Input voltage range is 85 to 264 V ac or 120 to 370 V dc.
Operating temperature range is -10°C to 70°C.
The converter is enclosed and designed for chassis mount.
It is approved by CE, cURus, and TUV.
Power rating is 145W with total output current of 10A.
Dimensions are 222mm x 95mm x 45mm and weight is 700g.
