| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| Type | |
| Voltage |

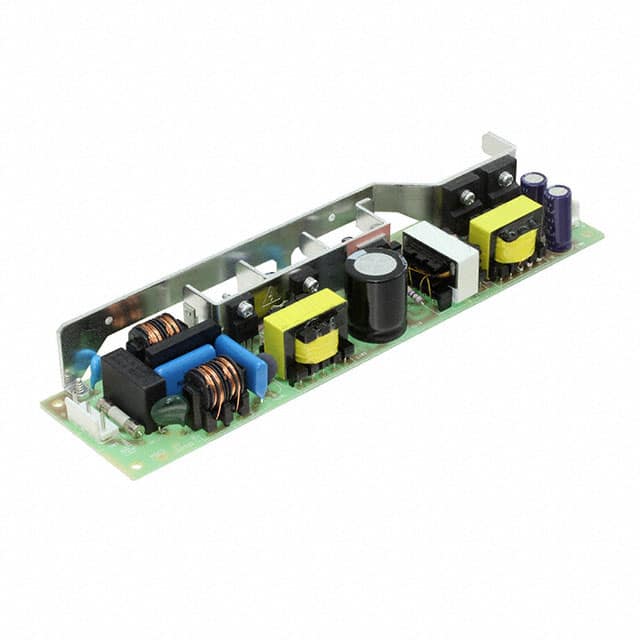

The Cosel LEA75F-48-Y is an open-frame AC/DC converter designed for chassis mounting. It delivers a 48V output with a maximum power of 75W and a current rating of 1.1A.
This converter operates with a wide input voltage range of 85-264 VAC and features Power Factor Correction (PFC) and universal input capabilities. Key electrical specifications include an efficiency of up to 85% at 200V AC input, line regulation of 192mV maximum, and load regulation of 300mV maximum. The operating temperature range is -10°C to 70°C with derating.
Designed for ITE (Commercial) applications, the LEA75F-48-Y offers robust protection features such as overcurrent and overvoltage protection. It meets safety standards with approval agencies including CE, cURus, and TUV. The dimensions are 222.0mm x 55.0mm x 29.0mm.
The nominal output voltage is 48V and the nominal output current is 1.1A, providing 52.8W of output power.
The input voltage range is 85-264 VAC at 50/60 Hz.
The operating temperature range is -20°C to 70°C with derating.
It includes overcurrent protection (105% of rating, auto recovery) and overvoltage protection (115-140% of rating).
Input-to-output isolation is 3000 VAC for 1 minute. Input-to-FG isolation is 2000 VAC.
The dimensions are 222.0mm x 55.0mm x 29.0mm (8.74" x 2.17" x 1.14") and it is chassis mount.
