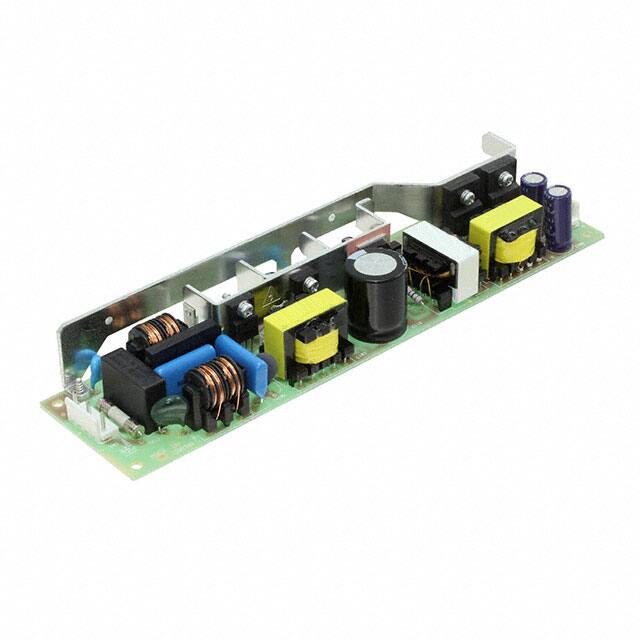

The Cosel LEA75F-24-Y is a 75W AC/DC converter designed for commercial ITE applications. It delivers a single 24V output at 3.2A from a universal AC input range of 85-264 VAC (also accepts DC 120-370V).
This open-frame, chassis-mount unit features active power factor correction (PFC) with a typical power factor of 0.99 at 100VAC input. Efficiency is rated at 84% typical at 100VAC and 85% at 200VAC. The converter includes adjustable output voltage (2.85-3.6V range), overcurrent protection (105% of rating), and overvoltage protection (115-140% of rating).
Electrical performance includes line regulation of 96mV max, load regulation of 150mV max, and ripple noise of 150mVp-p max (0 to +50°C). Isolation is 3000 VAC between input and output, 2000 VAC input to FG, and 500 VAC output to FG. Operating temperature range is -20°C to +70°C with derating.
The unit measures 222.0mm x 55.0mm x 29.0mm and is approved to CE, cURus, and TUV standards.
The output voltage is 24V and the output current is 3.2A, providing 75W of power.
The input voltage range is 85-264 VAC (also accepts DC 120-370V).
The operating temperature range is -20°C to +70°C with derating.
It includes overcurrent protection (works over 105% of rating) and overvoltage protection (115-140% of rating).
The dimensions are 222.0mm x 55.0mm x 29.0mm (8.74" x 2.17" x 1.14").
