| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

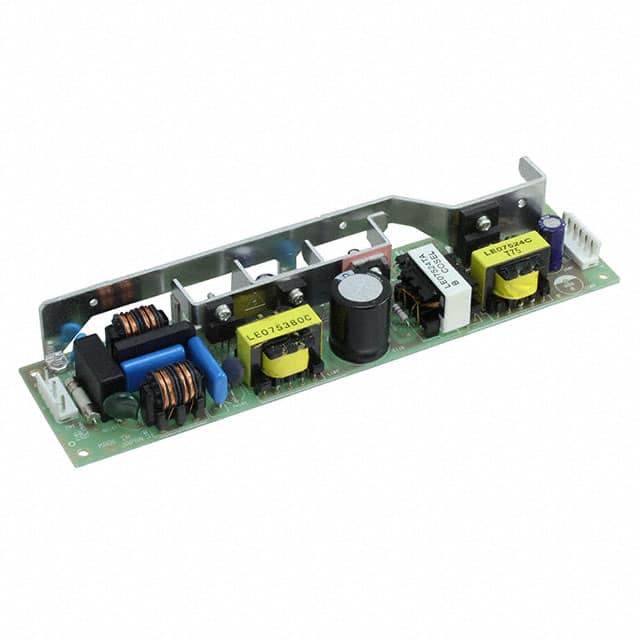

The Cosel LEA75F-24 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 3.2A, providing a total power of 75W. The converter supports a wide input voltage range of 85-264 VAC and includes Power Factor Correction (PFC) for improved efficiency.
Key electrical specifications include an efficiency of up to 85% at 200V AC input and a power factor of 0.93 typical at 200V AC. It offers robust protection features such as overcurrent protection that triggers above 105% of rating and overvoltage protection working at 115-140% of rating. The operating temperature range is -20°C to 70°C with derating.
Mechanically, the LEA75F-24 is designed for chassis mounting, with dimensions of 222.0mm x 55.0mm x 29.0mm. It boasts an isolation voltage of 3kV between input and output. The unit is approved by CE, cURus, and TUV, ensuring compliance with various safety standards.
24V at 3.2A maximum.
85-264 VAC.
-10°C to +70°C, with derating to -20°C.
85% typical at 200V AC input.
Overcurrent protection (105% of rating) and overvoltage protection (115-140% of rating), with automatic recovery.
3kV between input and output.
Chassis mount, 222.0mm x 55.0mm x 29.0mm.
