| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

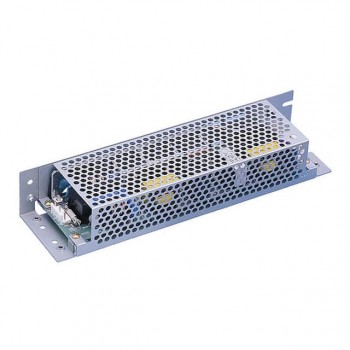

This Cosel LEA75F-15-SNY is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 15V output with a maximum current of 5A, delivering up to 75W of power.
The converter operates with a wide input voltage range of 85 to 264 VAC and features Power Factor Correction (PFC) and universal input capabilities. Its efficiency is rated at 80% typical.
Designed for chassis mounting, the unit measures 222.0mm in length, 55.0mm in width, and 29.0mm in height. It offers an isolation voltage of 3 kV and operates within an ambient temperature range of -20°C to 70°C with derating.
Key specifications include a start-up time of 500ms maximum and a hold-up time of 20ms typical. The unit is compliant with RoHS3 standards and has an MSL rating of 1.
The output voltage is 15V.
The maximum output current is 5A.
The input voltage range is 85 to 264 VAC.
The power rating is 75W.
The typical efficiency is 79% at 100V input and 81% at 200V input.
The operating temperature range is -20°C to 70°C.
It is designed for chassis mounting.
