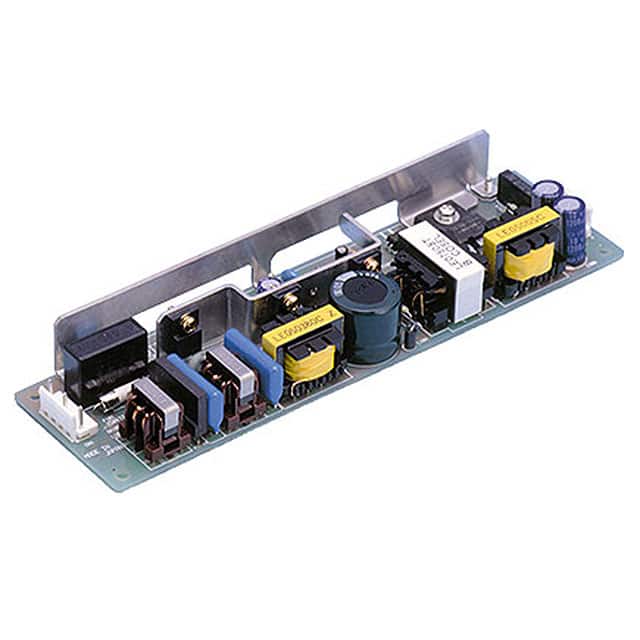

The Cosel LEA50F-48 is an open-frame AC/DC power supply designed for commercial applications. It delivers a stable 48V DC output with a maximum current of 1.1A, providing a total output power of 50W.
This power supply accepts a wide universal input voltage range from 85 to 264 VAC or 120 to 370 VDC. It operates with convection cooling and features a chassis mount for easy integration into systems. The unit offers features such as universal input and overcurrent protection.
Key electrical specifications include a line regulation of 192mV maximum and a load regulation of 300mV maximum. The operating temperature range is -20°C to +70°C with derating. Isolation voltage ratings are 3000 VAC (Input-Output), 2000 VAC (Input-FG), 500 VAC (Output-RC-FG), and 100 VAC (Output-RC).
Designed for ITE (Commercial) applications, the LEA50F-48 meets CE, cURus, and TUV approval agency standards. Its dimensions are 195.0mm in length, 55.0mm in width, and 23.0mm in height.
The output voltage is 48V.
The maximum output current is 1.1A.
The total output power is 50W.
The input voltage range is 85-264 VAC or 120-370 VDC.
The operating temperature range is -20°C to +70°C with derating.
It uses chassis mount.
