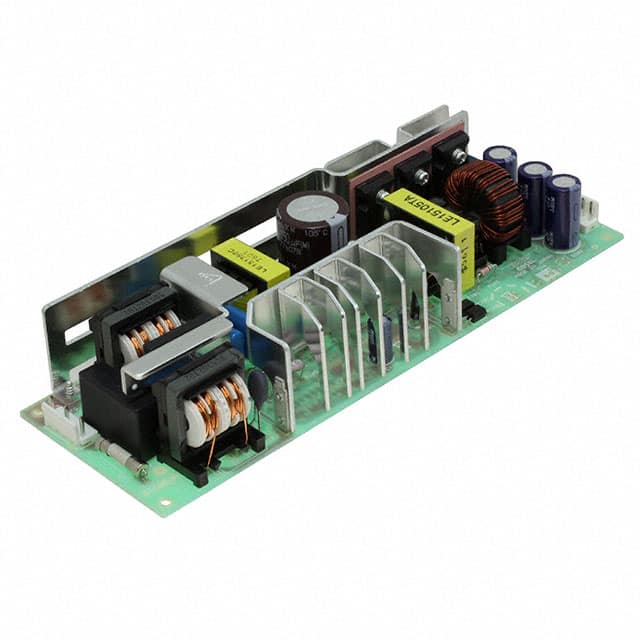

The Cosel LEA150F-5 is an open-frame AC/DC converter designed for chassis mounting. It provides a single output of 5V at up to 30A, delivering a total power of 150W.
This converter operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, and a frequency range of 47-63 Hz or DC. It offers typical efficiencies of 79% at 100V AC input and 85% at 200V AC input. Key electrical specifications include line regulation of 20mV maximum and load regulation of 40mV maximum.
Protection features include overcurrent protection that activates at 105% of rating and overvoltage protection between 115-140% of rating. The operating temperature range is -20°C to 70°C with derating. Isolation ratings include 3000 VAC for input-output and 2000 VAC for input-to-ground.
With dimensions of 222.0mm x 75.0mm x 37.0mm, the LEA150F-5 is suitable for various ITE (Commercial) applications requiring a reliable power supply.
The Cosel LEA150F-5 has a nominal output voltage of 5V.
The LEA150F-5 can provide a maximum output current of 30A.
The LEA150F-5 has a maximum output power of 150W.
The LEA150F-5 accepts an input voltage range of 85-264 VAC or 120-370 VDC.
The LEA150F-5 operates from -20°C to 70°C with derating.
The LEA150F-5 is designed for chassis mounting.
Isolation ratings include 3000 VAC (input-output), 2000 VAC (input-FG), 500 VAC (output-RC-FG), and 100 VAC (output-RC).
