| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

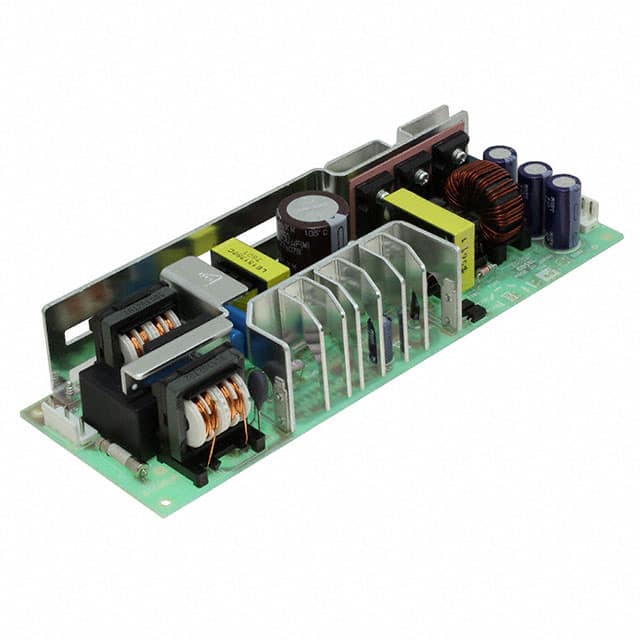

The Cosel LEA150F-48-Y is an open-frame AC/DC converter designed for chassis mounting. It delivers a 48V DC output voltage with a maximum current of 3.2A, providing a total power of 150W. This converter operates with a wide input voltage range of 85-264 VAC and features universal input capability.
Key electrical specifications include an efficiency of 87% and adjustable output voltage within the range of 46.0V to 50.0V. It offers features such as overcurrent and overvoltage protection, ensuring reliable operation. The operating temperature range is -20°C to +70°C with derating.
Designed for ITE (Commercial) applications, the LEA150F-48-Y meets various approval agency standards including CE, cURus, and TUV. Its dimensions are 222.0mm in length, 75.0mm in width, and 37.0mm in height. The unit provides robust isolation with AC3,000V between input and output.
The output voltage is 48V.
The maximum output current is 3.2 A.
The power rating is 150W.
The operating temperature range is -20°C to +70°C with derating.
It supports chassis mount.
The dimensions are 222.0mm in length, 75.0mm in width, and 37.0mm in height.
