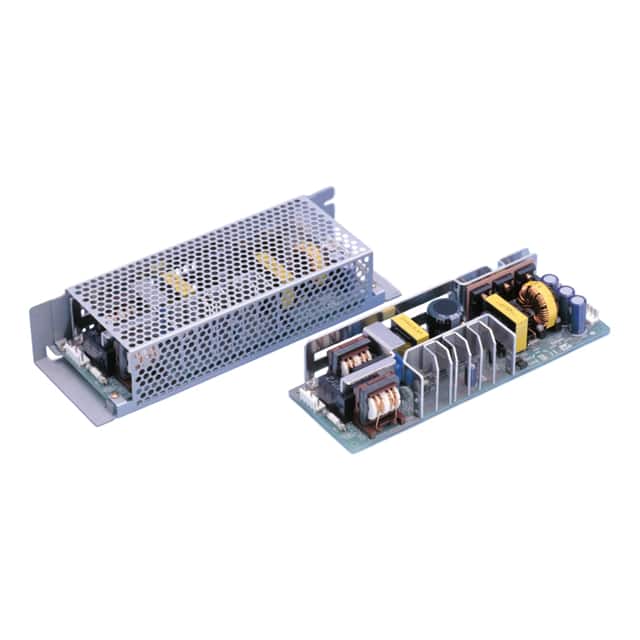

The Cosel LEA150F-48-SN is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 48V with a maximum current of 3.2A, delivering a total power of 150W.
This converter features a universal input voltage range of 85-264 VAC and operates at 50/60 Hz. It boasts an efficiency of up to 87% and includes features like universal input. The unit is designed for chassis mounting.
Key electrical specifications include a line regulation of 192mV maximum and a load regulation of 300mV maximum. Ripple noise is rated at 350mVp-p at 0 to +50 C. The operating temperature range is -20°C to 70°C with derating. Isolation voltages are rated at 3000VAC (Input-Output-RC), 2000VAC (Input-FG), 500VAC (Output-RC-FG), and 100VAC (Output-RC).
Compliance includes RoHS3, REACH Unaffected, and MSL 1. Approval agencies include CE, cURus, and TUV.
85-264 VAC.
48V at 3.2A.
-20°C to 70°C with derating.
Chassis mount, enclosed.
Up to 87% typical.
CE, cURus, TUV.
3000 VAC.
