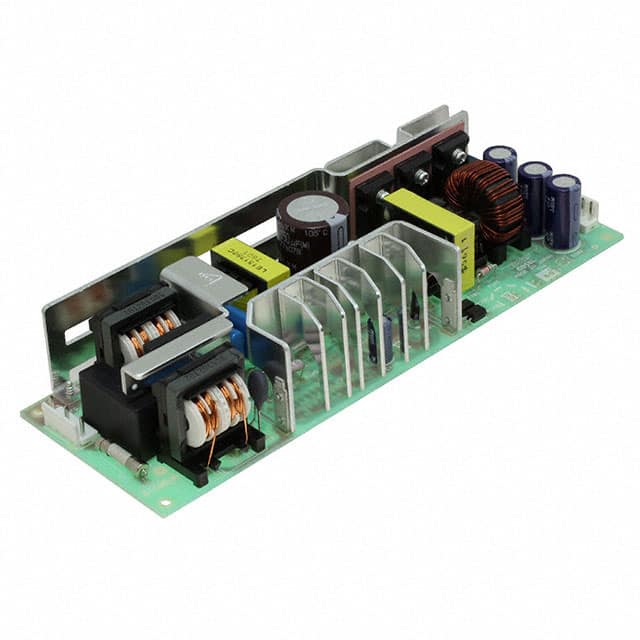

The Cosel LEA150F-24-Y is an open-frame AC/DC power supply designed for chassis mounting. It delivers a stable 24V output at up to 6.3A, providing a total of 150W of power.
This converter accepts a wide universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications. It boasts high efficiency, reaching up to 85% at 200V AC input, and features a power factor of 0.99 at 100V AC.
Key electrical specifications include line regulation of 96mV maximum and load regulation of 150mV maximum. The operating temperature range is -10 to +70°C, with derating applied. Safety features include overcurrent and overvoltage protection.
With dimensions of 222.0mm x 75.0mm x 37.0mm, the LEA150F-24-Y is designed for integration into various systems requiring reliable power conversion.
The input voltage range is 85 to 264 VAC (or 120-370 VDC).
The operating temperature range is -10 to +70°C (with derating).
The converter provides 24V output at 6.3A, delivering 150W.
It is an open frame chassis mount converter with dimensions 222.0mm x 75.0mm x 37.0mm.
Overcurrent protection (OCP) triggers above 105% of rating and recovers automatically. Overvoltage protection (OVP) operates at 115-140% of rated output.
Typical efficiency is 84% at 100VAC input and 85% at 200VAC input.
Maximum ripple and noise is 150 mVp-p from 0 to +50°C, and 180 mVp-p from -10 to 0°C.
