| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

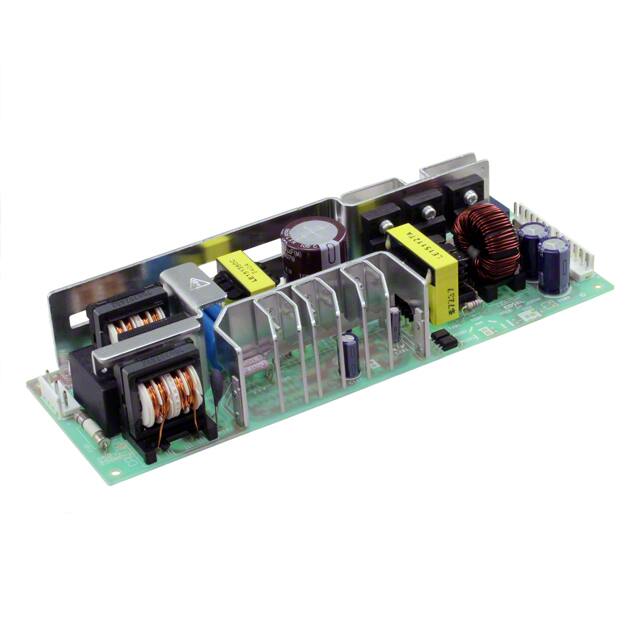

The Cosel LEA150F-12-SN is a versatile AC/DC power supply designed for various applications. It provides a stable 12V output with a maximum power of 150W, making it suitable for demanding electronic systems.
Key electrical specifications include a wide input voltage range of 85-264 VAC or 120-370 VDC, and efficiencies ranging from 81% to 85% at different input voltages. The converter offers a line regulation of 48mV maximum and a load regulation of 100mV maximum, ensuring consistent power delivery. It also features overcurrent and overvoltage protection for enhanced reliability.
Designed for easy integration, the LEA150F-12-SN has a chassis mount type and an enclosed form factor. Its dimensions are 222.0mm x 75.0mm x 37.0mm. The operating temperature range is -20°C to 70°C with derating, suitable for various environmental conditions. Approval agencies include CE, cURus, and TUV, indicating compliance with safety standards.
This AC/DC converter is ideal for ITE (Commercial) applications requiring a reliable and efficient power source. Its robust design and comprehensive protection features make it a dependable choice for industrial and commercial equipment.
The output voltage is 12V.
The maximum output power is 150W.
The input voltage range is 85-264 VAC or 120-370 VDC.
The operating temperature range is -20°C to 70°C with derating.
It is a chassis mount type.
The dimensions are 222.0mm x 75.0mm x 37.0mm.
It is approved by CE, cURus, and TUV.
