Mfr Part #:

LE910-EUG

Mfr Name: Telit

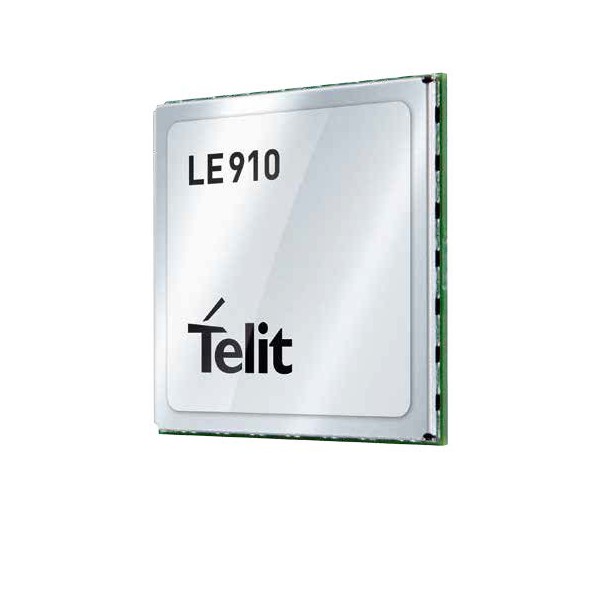

The Telit LE910-EUG is a next-generation LTE module designed for high-speed cellular connectivity. It offers data rates up to 100 Mbps downlink and 50 Mbps uplink on LTE networks.

✓ Total Stock: 13 pcs

$ Price Range: $0.99

LE910-EUG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	13 pcs On Request	13 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LE910-EUG Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Telit
Dimensions	28.2 x 28.2 x 2.2 mm
Form Factor	144-pin LGA
Interface	USB 2.0 HS, UART, 10 I/O ports, 1.8 V / 3 V SIM interface
Operating Temperature	-40°C / +85°C
Technology	4G LTE 3GPP Release 9, MIMO

View Similar Products (0)

LE910-EUG Description

Short technical summary and product information.

The Telit LE910-EUG is a versatile LTE module supporting 3GPP Release 9 standards, delivering robust cellular connectivity for demanding applications. It provides impressive data rates of up to 100 Mbps downlink and 50 Mbps uplink over LTE, with automatic fallback to HSPA+ at 42 Mbps downlink and 5.76 Mbps uplink.

This module integrates a multi-constellation GPS and GLONASS receiver for high-sensitivity positioning, making it suitable for mobile data and IoT applications. It features a compact 28.2 x 28.2 x 2.2 mm form factor with a 144-pin LGA interface, including USB 2.0 HS, UART, and 10 I/O ports. The operating temperature range of -40°C to +85°C ensures reliability in harsh environments.

With built-in TCP/IP and UDP/IP stacks, the LE910-EUG simplifies internet connectivity. It supports various bands including LTE (B20, B3, B7), UMTS/HSPA+ (B5, B8, B1), and GSM/GPRS/EDGE (900/1800 MHz), ensuring broad network coverage across EMEA and Australian markets. The module also features MIMO DL 2x2 and Rx Diversity technology for enhanced performance and link reliability.

LE910-EUG Quick Information

Product Type: LTE Module

Series: LE910

Canonical Name: Telit LE910-EUG LTE Module

Subcategory: LTE Module

LE910-EUG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

LE910-EUG Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LE910-EUG Features

High-speed LTE connectivity up to 100 Mbps.
Integrated GPS and GLONASS positioning.
Wide operating temperature range: -40°C to +85°C.
Compact 28.2 x 28.2 x 2.2 mm LGA form factor.
Supports LTE, HSPA+, UMTS, and GSM networks.

LE910-EUG Applications

Ideal for IoT applications.
Suitable for mobile data devices.
Enables M2M communication.
Supports high-sensitivity positioning needs.
Designed for demanding environments.

LE910-EUG FAQs

6 frequently asked questions generated from this part’s specifications.

What are the maximum data rates for the Telit LE910-EUG module?

The module supports data rates of 100 Mbps downlink and 50 Mbps uplink on LTE networks, and up to 42 Mbps downlink and 5.76 Mbps uplink on HSPA+ networks.

What is the operating voltage range for the Telit LE910-EUG?

The module operates on a nominal 3.8 VDC supply, with a range of 3.3 VDC to 4.2 VDC.

What is the operating temperature range of the Telit LE910-EUG module?

The module operates within an extended temperature range of -40°C to +85°C.

What positioning technologies are integrated into the Telit LE910-EUG?

The module integrates a multi-constellation GPS and GLONASS receiver for high-sensitivity positioning capabilities.

What are the dimensions of the Telit LE910-EUG module?

The module has a compact form factor measuring 28.2 x 28.2 x 2.2 mm.

What network technologies does the Telit LE910-EUG support?

The module supports 4G LTE (3GPP Release 9), HSPA+, UMTS, and GSM/GPRS/EDGE networks.
