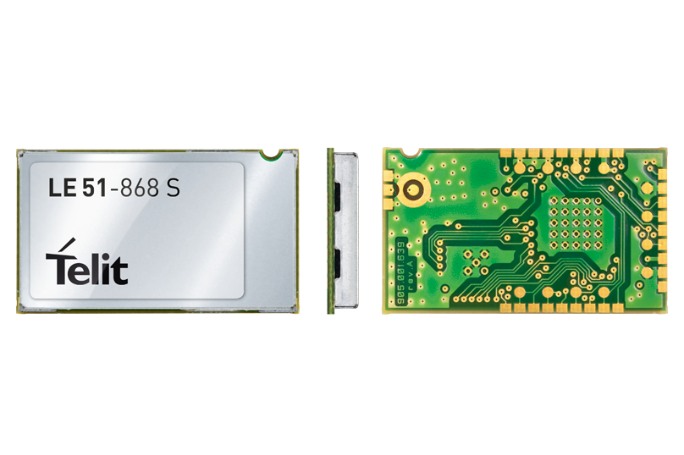

The Telit LE51-868S is a high-performance, CE-certified narrow-band wireless LGA module designed for operation in the 863-870 MHz license-free band. It provides wide area coverage on SIGFOX networks and supports both Sigfox Uplink/downlink communications alongside the Telit proprietary local network protocol.
With an output power of up to 35 mW and a sensitivity of -126 dBm at 600 bps, the LE51-868S is suitable for a range of applications, from short-range to long-range, including asset tracking, energy monitoring, and smart building solutions. The module is designed to create local communication networks in a star architecture and offers features like data encryption (AES128), cyclic wake-up, and Download over the Air (DOTA).
Key features include ultra-narrow band technology, ultra-low power consumption, and an industrial temperature range. The module is pin-to-pin compatible with other SR modules from Telit. Its dimensions are 26 x 15 x 3 mm, with a weight of 1.7 grams.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LE51-868S module operates in the 868.00 – 868.60 MHz frequency band.
The maximum radio frequency power transmitted is 11.92 dBm e.r.p. in Band 48.
The LE51-868S module has an output power of up to 35 mW.
The sensitivity of the LE51-868S module is -126 dBm at 600 bps.
The LE51-868S module operates from a power supply voltage of 2 V to 3.6 V.
The dimensions of the LE51-868S module are 26 x 15 x 3 mm.
Yes, the LE51-868S module supports AES128 data encryption.
