| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Data Rate | |
| Distance | |
| Operating Temperature | |
| Power Consumption | |
| Voltage | |
| Wavelength |

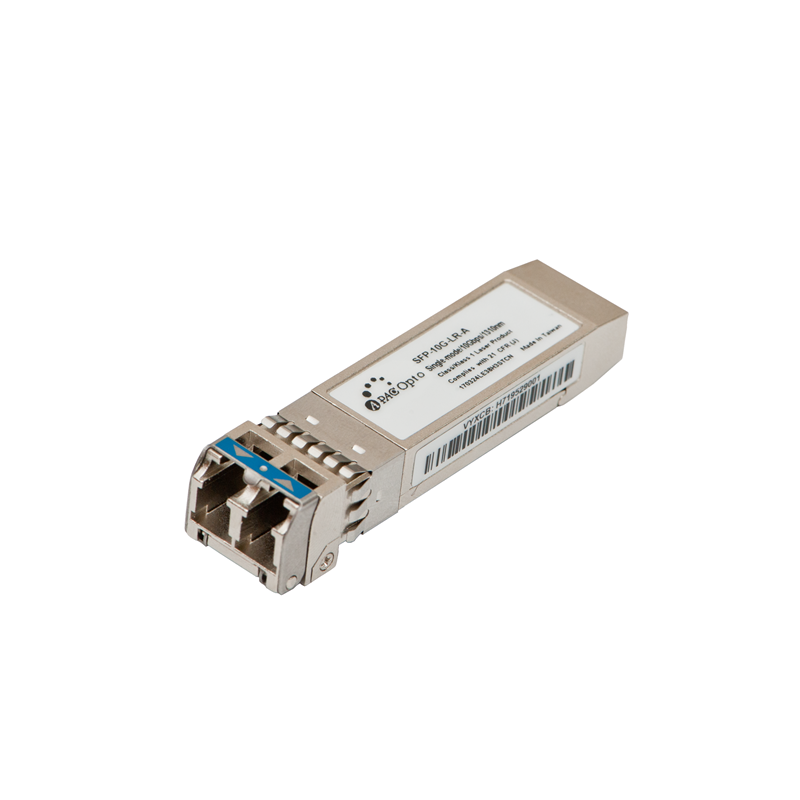

The APAC LE38-H3S-TI-N is a high-performance single-mode SFP+ optical transceiver module. It supports data rates up to 10.3125 Gbps and is designed for applications such as 10GBASE-LW/LR Ethernet and Fibre Channel.
This transceiver operates at a wavelength of 1310 nm and can achieve distances of up to 10 kilometers. It features a duplex LC connector for fiber optic connections. The module is hot-pluggable and operates on a single 3.3V power supply.
Key electrical specifications include a typical output optical power of -6 dBm and a receiver sensitivity of -6 dBm. The operating temperature range for this model is -40°C to 85°C, making it suitable for extended industrial environments. It complies with SFP+ MSA standards SFF-8431 and SFF-8432, and includes diagnostic monitoring as per SFF8472.
The LE38-H3S-TI-N is a Class 1 laser product. Its applications include 10G Ethernet, 8G Fibre Channel, 10G Fibre Channel, SONET OC-192 SR-1, and SDH STM I-64.1.
The operating voltage is 3.3 V.
The operating temperature range is -40 to 85 °C.
It supports a data rate of 10.3125 Gbps.
The maximum reach is 10 km over single-mode fiber.
It uses a Duplex LC connector.
Yes, it is hot-pluggable.
It is a Class 1 laser product compliant with EN 60825-1.
