LE25S161PCTXG The On Semiconductor LE25S161PCTXG is a 16Mbit SPI Flash Memory device. It operates with a supply voltage range of 1.65V to 1.95V and a maximum clock frequency of 70 MHz.
Mfr Part #:

LE25S161PCTXG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor LE25S161PCTXG is a 16Mbit SPI Flash Memory device. It operates with a supply voltage range of 1.65V to 1.95V and a maximum clock frequency of 70 MHz.
✓ Total Stock: 4,834 pcs
$ Price Range: $1.28

LE25S161PCTXG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,834 pcs
On Request
4834 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LE25S161PCTXG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

LE25S161PCTXG Description

Short technical summary and product information.

The LE25S161PCTXG from On Semiconductor is a 16 Mbit (2048K x 8-bit) serial flash memory device utilizing a SPI bus interface. It is designed for applications requiring compact dimensions and efficient program storage, such as portable information devices.



Key electrical specifications include an operating voltage range of 1.65V to 1.95V and a maximum operating frequency of 70 MHz. The device supports SPI modes 0 and 3. It offers a memory size of 16Mbit with an organization of 2M x 8.



This flash memory features a sector erase capability with sector sizes of 4 kbytes for small sectors and 64 kbytes for standard sectors. It also supports page programming with 256 bytes per page. The operating temperature range is -40°C to +90°C.

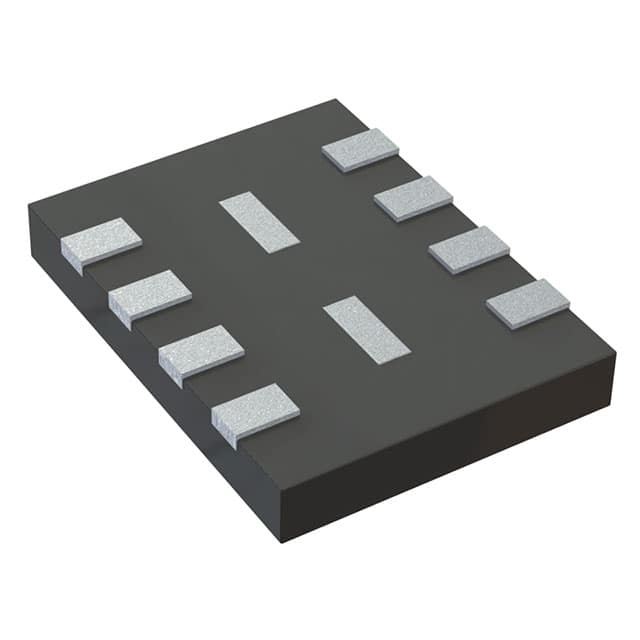

The LE25S161PCTXG is housed in an 8-UDFN (4x3) package and is surface-mounted. It boasts high reliability with 100,000 erase/program cycles and a 20-year data retention period.

LE25S161PCTXG Quick Information

Product Type: Flash Memory
Canonical Name: LE25S161 Serial Flash Memory
Subcategory: Serial Flash Memory

LE25S161PCTXG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LE25S161PCTXG Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LE25S161PCTXG Features

  • 16Mbit SPI serial flash memory device.
  • Operates from 1.65V to 1.95V supply voltage.
  • Maximum clock frequency of 70 MHz.
  • Wide operating temperature range of -40°C to 90°C.
  • Compact 8-UDFN (4x3) surface mount package.

LE25S161PCTXG Applications

  • Ideal for portable information devices.
  • Suitable for compact embedded systems.
  • Used for program storage applications.
  • Stores parameters or data with rewrite cycles.

LE25S161PCTXG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the LE25S161PCTXG?

1.65V to 1.95V.

What is the operating temperature range?

-40°C to 90°C.

What package does the LE25S161PCTXG come in?

8-UDFN Exposed Pad (4x3 mm).

What is the memory size of the LE25S161PCTXG?

16Mbit (2M x 8).

What is the maximum clock frequency?

70 MHz.

What is the data retention period?

20 years.

How many erase/program cycles are supported?

100,000 cycles.
