| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Beam Angle | |
| Color | |
| Color Emission | |
| Current | |
| Electrical Power | |
| Height | |
| Length | |
| Lumens | |
| Luminous Flux @ Current | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Temperature | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Width |

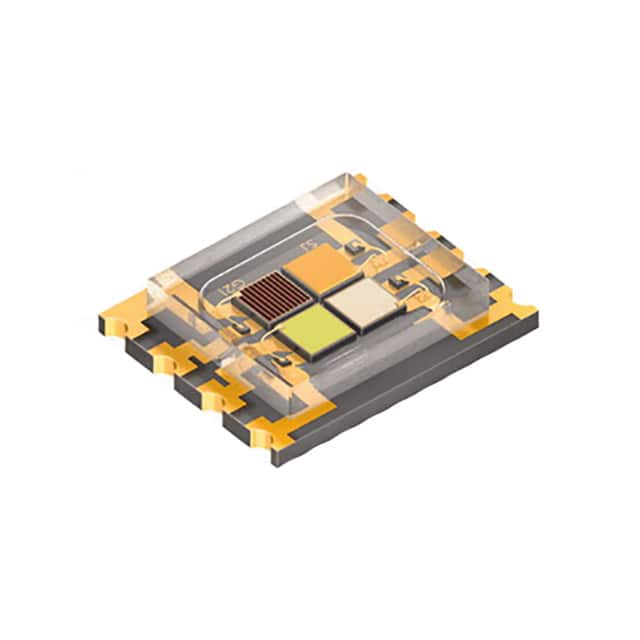

The Osram OSRAM OSTAR™ Stage, LE RTDUW S2W is a multi-color LED designed for various lighting applications. This compact light source utilizes SMT technology and features a glass window on top. It emits light in Red (612-630 nm), True Green (513-545 nm), and Deep Blue (439-461 nm) wavelengths, along with white light.
The LED has a wide beam angle of 120°. Its operating temperature ranges from -40°C to 85°C. The dimensions are 5.75 mm in length, 4.68 mm in width, and 1.1 mm in height. It is supplied in an 8-SMD Module package and is designed for surface mounting.
Electrical specifications include power ratings of 1.8 W for Red, 2.5 W for Green, and 2.4 W for Blue and White. The forward voltage requirements are 2.5V for Red, 3.6V for Green, and 3.45V for Blue and White. Current ratings are 700mA for all colors. Luminous flux values are 79lm for Red, 135lm for Green, 765mW for Blue, and 182lm for White. Luminous efficacy is rated at 45 lm/W for Red, 54 lm/W for Green, and 75 lm/W for White.
This LED is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is also REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Osram LE RTDUW S2W LED emits Red (612-630 nm), True Green (513-545 nm), Deep Blue (439-461 nm), and White light.
The beam angle of the Osram LE RTDUW S2W LED is 120°.
The operating temperature for the Osram LE RTDUW S2W LED ranges from -40°C to 85°C.
The Osram LE RTDUW S2W LED is RoHS3 Compliant.
The Osram LE RTDUW S2W LED is supplied in an 8-SMD Module package.
