| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Dimensions | |
| For Use With | |
| Mounting Type | |
| Operating Temperature | |
| Output Voltage |

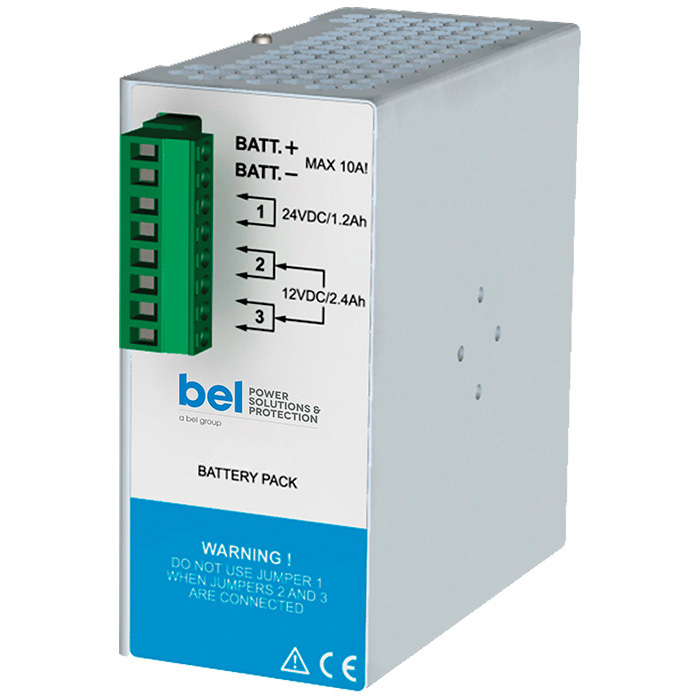

The Bel Power Solutions LDX-L30 is a versatile dual voltage battery housing engineered to accommodate two standard 12 VDC, 1.2 Ah sealed lead acid batteries. This unit offers user-selectable output voltages of either 12 VDC (with a capacity of 2.4 Ah) or 24 VDC (with a capacity of 1.2 Ah), providing flexibility for various power requirements.
Designed for general use in industrial control, communication, and instrumentation equipment, the LDX-L30 features integrated self-resettable overcurrent protection for enhanced safety. Its robust aluminum enclosure ensures durability, while the compact dimensions and DIN rail installation capability facilitate easy integration into protective enclosures and existing systems.
The housing supports batteries with maximum dimensions of 48.5 x 54.5 x 97.5 mm. It operates within an ambient temperature range of -20°C to +40°C, or as limited by the installed batteries. The unit is equipped with screw-type pluggable connectors for battery and selection mode connections, compatible with wire gauges from 24 to 12 AWG (2.5 mm²).
The output voltage is settable to either 12 VDC or 24 VDC.
It is designed for housing 2 standard sealed lead acid batteries, each rated at 12 VDC / 1.2 Ah.
The maximum charging current is 0.6 A for the 12 VDC configuration and 0.3 A for the 24 VDC configuration.
The maximum discharge current is 5 A for the 12 VDC configuration and 3 A for the 24 VDC configuration.
The operating ambient temperature range is -20°C to +40°C, or according to battery limits.
The dimensions are 54 x 115 x 110 mm.
Yes, it features integrated self-resettable overcurrent protection with a 9 A fuse.
