| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Isolation | |
| Operating Temperature | |
| Output Voltage | |
| SVHC Present | |
| Storage Temperature |

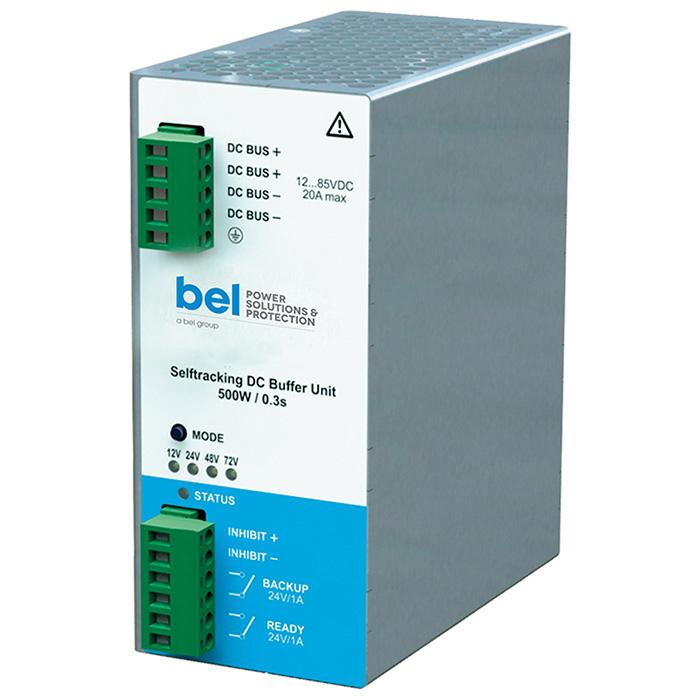

The Bel Power Solutions LDX-B20 is a microprocessor-controlled buffer unit rated for 20 A, usable in 12 V, 24 V, 48 V, and 72 V systems. It monitors the DC power supply voltage and utilizes a capacitor bank to maintain regulated output for at least 300 ms during a power failure.
This buffer module features a wide input voltage range of 12-85 VDC and offers multiple protections, including overload and short circuit. It integrates a step-up (boost) converter for charging the capacitor bank and a step-down (buck) converter for discharging at an adjustable output voltage. The LDX-B20 supports both AUTO and MANUAL operating modes, with the latter allowing user-settable fixed output voltages.
Designed for reliability, the LDX-B20 has an energy storage capacity of over 150 Joules. It operates within a temperature range of -40°C to +70°C and is cooled by natural convection. The unit complies with various safety and EMC standards, including UL508 and EN60950 for safety, and EN55022/EN55011 Class A for emissions.
The input voltage range is 12 to 85 VDC.
20 A at input voltages below 48 VDC and 16 A at voltages above 48 VDC.
-40°C to +70°C.
Greater than 150 Joules.
Less than 40 seconds.
AUTO mode (senses input voltage) and MANUAL mode (fixed output voltage selectable by front button).
LDC, LDD, LDN, LDT, and LDW series power supplies from Bel Power Solutions.
