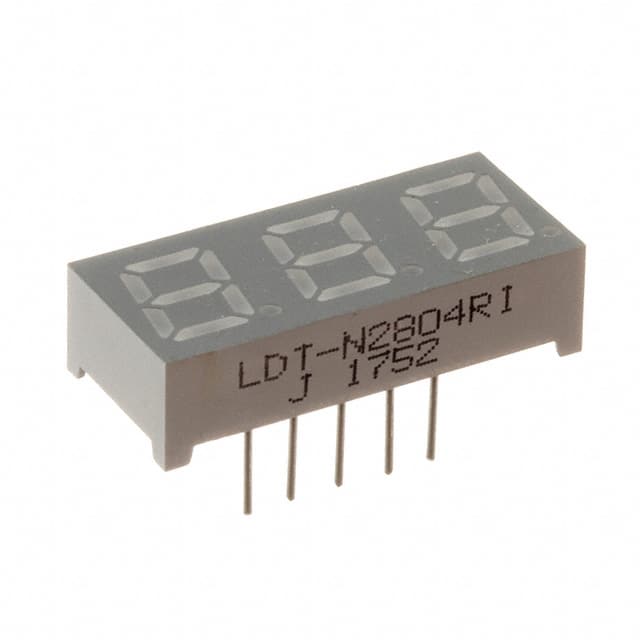

LDT-N2804RI The Lumex Opto/Components Inc. LDT-N2804RI is a 3-digit, 7-segment LED display in red. It features a 0.28" character height and operates at 2V.
Mfr Part #:

LDT-N2804RI

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex Opto/Components Inc. LDT-N2804RI is a 3-digit, 7-segment LED display in red. It features a 0.28" character height and operates at 2V.
✓ Total Stock: 5 pcs
$ Price Range: $0.99

LDT-N2804RI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LDT-N2804RI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Lead Spacing
Millicandela Rating
Number of Characters
Power Dissipation (Max)
Storage Temperature
Tape & Reel
Voltage
Wavelength
View Similar Products (0)

LDT-N2804RI Description

Short technical summary and product information.

This Lumex Opto/Components Inc. LDT-N2804RI is a 3-digit, 7-segment numeric display module. The display features a bright red color and a character height of 0.28 inches (7.00mm). It operates with a typical forward voltage of 2V and a current of 10mA, with a maximum power dissipation of 105mW. The luminous intensity is rated at 1.4mcd, and the wavelength is 635nm.



The display comes in a 12-DIP package with 11 leads, measuring 0.394" H x 0.887" W x 0.240" D. It utilizes a common cathode pin configuration. This component is suitable for various display applications where clear numeric indication is required.



Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified.

LDT-N2804RI Quick Information

Product Type: LED Display
Canonical Name: Lumex Opto/Components Inc. LDT-N2804RI 7-Segment LED Display
Subcategory: 7-Segment

LDT-N2804RI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LDT-N2804RI Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LDT-N2804RI Features

  • Three-digit, 7-segment red LED display.
  • 0.28 inch (7.00mm) character height.
  • Operates at 2V with 10mA current.
  • 1.4mcd luminous intensity.
  • 12-DIP package with 11 leads.

LDT-N2804RI Applications

  • Ideal for instrument readouts.
  • Suitable for status indicators.
  • Used in control panel displays.
  • Applicable for test equipment.

LDT-N2804RI FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the LDT-N2804RI?

The operating voltage of the LDT-N2804RI is 2V.

What is the package type of the LDT-N2804RI?

The package type of the LDT-N2804RI is 12-DIP (0.300 inch, 7.62mm), 11 Leads.

What is the display type of the LDT-N2804RI?

The display type of the LDT-N2804RI is 7-segment.

What is the color of the display in the LDT-N2804RI?

The display color of the LDT-N2804RI is red.

What is the luminous intensity of the LDT-N2804RI?

The luminous intensity of the LDT-N2804RI is 1.4mcd.
