| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 1549+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Topology | |
| Type | |
| Voltage |
The LDS8680008-T2 from IXYS Integrated Circuits Division is a high-performance LED driver IC belonging to the PowerLite™ series. This device functions as a DC DC regulator with a switched capacitor (charge pump) topology, suitable for demanding applications like camera flashes.
Key electrical specifications include an output current of 400mA per channel, with two outputs available. It operates from a supply voltage ranging from 2.7V to 5.5V and can deliver an output voltage of up to 6V. The internal switch is integrated, simplifying the design. The device operates at a frequency of 1MHz.

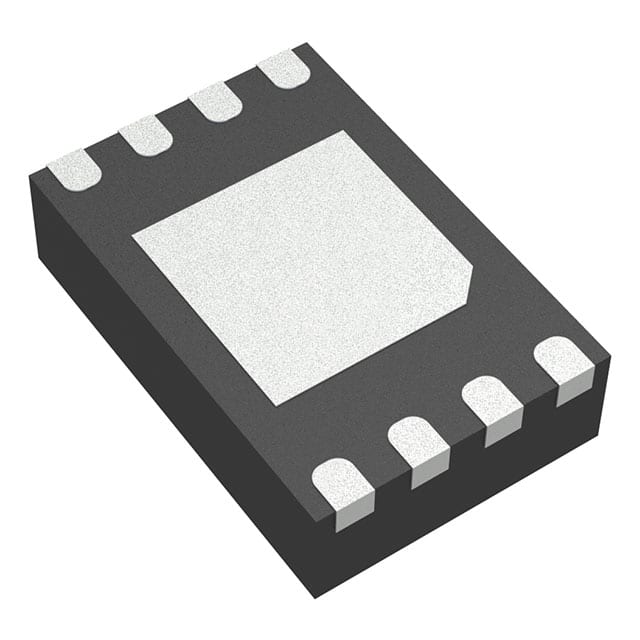

Designed for surface mounting, the LDS8680008-T2 comes in an 8-WFDFN exposed pad package, specifically an 8-TDFN (2x3) size. The operating temperature range is -40°C to 85°C (TA), ensuring reliability in various environmental conditions. This component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
The device is available in an 8-WFDFN Exposed Pad package.
The operating temperature range is -40°C to 85°C.
It has two outputs.
Each channel can deliver 400mA (Flash).
The switching frequency is 1MHz.
It uses a switched capacitor (charge pump) topology.
