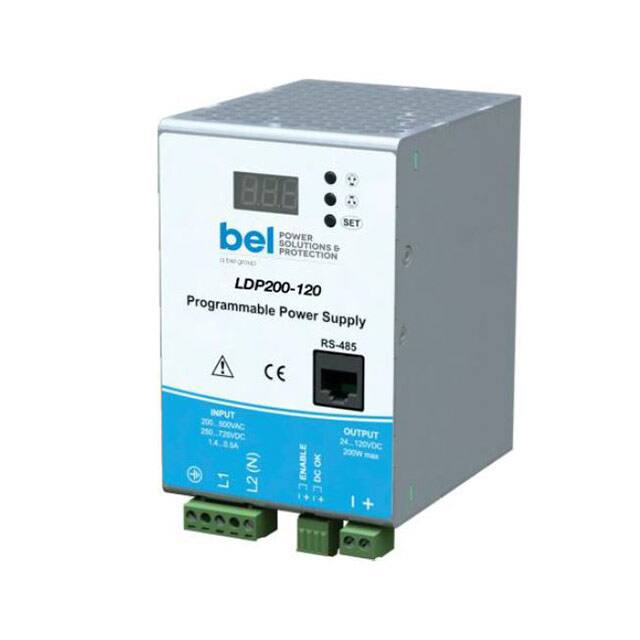

The Bel Power Solutions LDP200-120 is a versatile 200W AC/DC converter designed for industrial applications. It offers a wide AC input voltage range of 170-550 VAC or a DC input range of 250-725 VDC, providing flexibility for various power sources.
The LDP200-120 features a user-settable output voltage range from 24 to 120 VDC, allowing for customization to specific application needs. It supports a maximum output current of 4A and has an efficiency rating of 82-90%. The unit operates within a temperature range of up to +50°C with no derating, and -40°C to 70°C with derating.
Designed for easy installation, this enclosed converter is Class I isolation device suitable for DIN rail mounting within a protective enclosure. Its compact dimensions are 80 x 120 x 100 mm. Additional features include active PFC, remote ON/OFF control, and MODBUS over RS-485 interface for monitoring and control.
Applications for the LDP200-120 include industrial control, instrumentation equipment, communication systems, and renewable energy systems. It can also be used as a battery charger for lead-acid, nickel, and lithium chemistries, or for LED lighting.
The AC input voltage range is 170 to 550 VAC, and the DC input range is 250 to 725 VDC.
The output voltage is adjustable from 24 to 120 VDC with 1V resolution.
The maximum output power is 200W.
The operating temperature range is -40°C to +70°C with derating above +50°C.
The dimensions are 80 mm width, 120 mm height, and 100 mm length.
Efficiency ranges from 82% to 90% depending on load and input conditions.
It is an enclosed type power supply.
