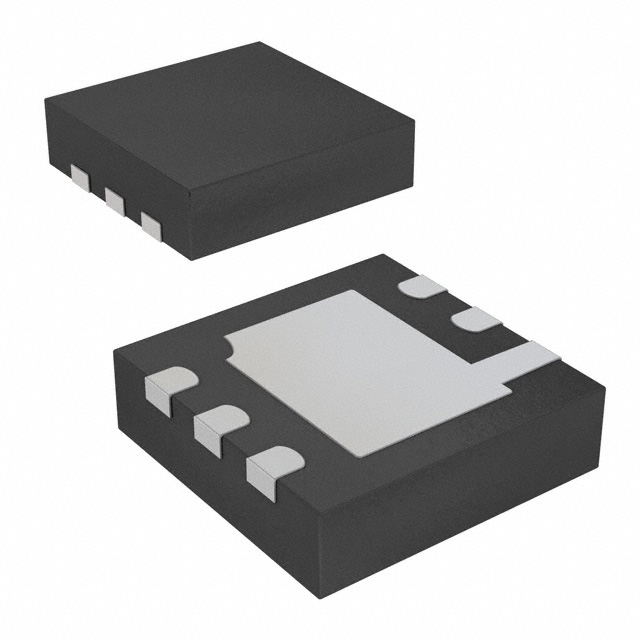

LDLN015PU30R The STMicroelectronics LDLN015PU30R is a linear voltage regulator providing a fixed 3V output at up to 150mA. It features a 6-DFN (2x2) surface mount package.
Mfr Part #:

LDLN015PU30R

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics LDLN015PU30R is a linear voltage regulator providing a fixed 3V output at up to 150mA. It features a 6-DFN (2x2) surface mount package.
✓ Total Stock: 18,000 pcs
$ Price Range: $0.28

LDLN015PU30R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LDLN015PU30R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
SVHC Present
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

LDLN015PU30R Description

Short technical summary and product information.

The STMicroelectronics LDLN015PU30R is a linear voltage regulator designed for applications requiring a stable 3V output. It can supply up to 150mA of current and operates over a temperature range of -40°C to 125°C.



This device features over current and over temperature protection, along with an Enable control input. The PSRR is rated from 92dB down to 50dB across the 1kHz to 100kHz frequency range. The regulator is housed in a compact 6-DFN (2x2) package, suitable for surface mounting.



With its fixed output and protective features, the LDLN015PU30R is suitable for various power management tasks in electronic devices where a reliable, low-dropout voltage is needed.

LDLN015PU30R Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: LDLN015PU30R Linear Voltage Regulator
Subcategory: Voltage Regulators - Linear

LDLN015PU30R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LDLN015PU30R Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LDLN015PU30R Features

  • Fixed 3V output voltage.
  • 150mA maximum output current.
  • Low 0.18V dropout voltage.
  • Over current and over temperature protection.
  • Compact 6-DFN (2x2) surface mount package.

LDLN015PU30R Applications

  • Powering sensitive analog circuits.
  • Battery-powered device applications.
  • Point-of-load voltage regulation.
  • General-purpose low-power regulation.

LDLN015PU30R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the LDLN015PU30R?

The LDLN015PU30R provides a fixed output voltage of 3V.

What is the maximum output current?

The maximum output current is 150mA.

What package is the LDLN015PU30R available in?

It is available in a 6-DFN (2x2) surface-mount package.

What is the operating temperature range?

-40°C to 125°C.

What is the dropout voltage at 150mA?

Typical dropout voltage is 0.18V at 150mA.

Does the LDLN015PU30R have an enable control?

Yes, it includes an enable control input.

What protection features are included?

The regulator includes over-current and over-temperature protection.
