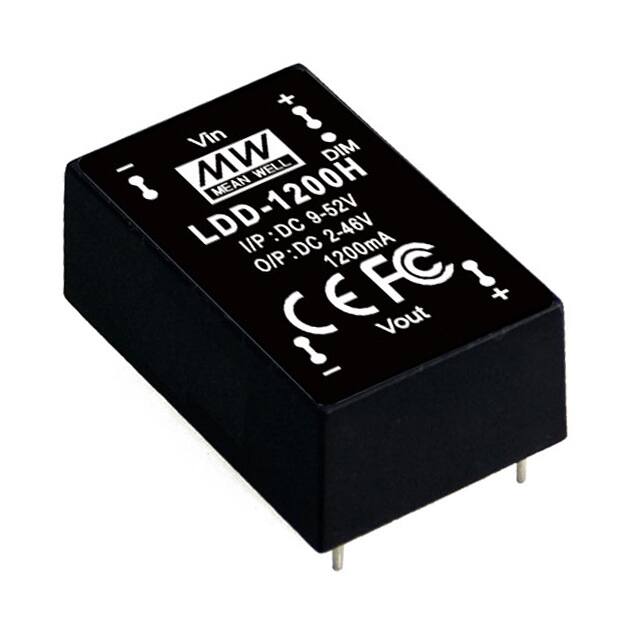

LDD-1200H Constant current buck LED driver from Mean Well, delivering 1.2A output with 2-46V output range and 97% efficiency. Features PWM dimming and protection against over-temperature and short circuits.
Mfr Part #:

LDD-1200H

Available from 1 distributors
Mfr Name: Mean Well USA
Mean Well USA
Constant current buck LED driver from Mean Well, delivering 1.2A output with 2-46V output range and 97% efficiency. Features PWM dimming and protection against over-temperature and short circuits.
✓ Total Stock: 5 pcs
$ Price Range: $7.93

LDD-1200H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LDD-1200H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Dimming
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power
Protection
Storage Temperature
Topology
Type
Voltage
Weight
Width
View Similar Products (0)

LDD-1200H Description

Short technical summary and product information.

The Mean Well LDD-1200H is a constant current buck LED driver designed for high-efficiency LED lighting applications. It delivers a nominal output current of 1.2A over an output voltage range of 2 to 46V DC, with an input voltage range of 9 to 52V DC. The driver achieves up to 97% typical efficiency, minimizing power loss and heat generation.



This driver includes PWM dimming capability and remote on/off control, along with built-in over-temperature protection (OTP) and short-circuit protection (SCP) for reliable operation. The module is housed in a 24-DIP through-hole package with 9 leads, measuring 31.8 x 20.3 x 12.2 mm and weighing 15.19 g. It is rated IP67 for dust and water ingress protection, making it suitable for outdoor or harsh environments.



The LDD-1200H operates over a wide temperature range of -40°C to 85°C and carries CE approval. It is supplied in tubes of 15 pieces. This driver is ideal for constant current LED lighting systems requiring a compact, board-mountable solution.

LDD-1200H Quick Information

Product Type: LED Driver
Series: LDD
Canonical Name: Mean Well LDD-1200H Constant Current Buck LED Driver
Subcategory: Constant Current Buck

LDD-1200H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected

LDD-1200H Estimated Pricing

Qty Low High
750+ $7.93 $7.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

LDD-1200H Features

  • Constant current buck topology for LED driving.
  • 1.2A output current with 2-46V range.
  • 97% typical efficiency for reduced power loss.
  • PWM dimming and remote on/off control.
  • Over-temperature and short-circuit protection.

LDD-1200H Applications

  • Ideal for constant current LED lighting applications.
  • Suitable for outdoor LED fixtures with IP67 rating.
  • Used in industrial and commercial lighting systems.
  • Can be integrated into through-hole PCB designs.

LDD-1200H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the LDD-1200H?

The output voltage range is 2 to 46 V DC.

What is the input voltage range?

The input voltage range is 9 to 52 V DC.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type does the LDD-1200H use?

It uses a 24-DIP Module with 9 leads, through-hole mounting.

Is the LDD-1200H RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified.

Does the LDD-1200H support dimming?

Yes, it supports PWM dimming.

What protections are included?

Over-temperature protection (OTP) and short-circuit protection (SCP).
