| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Conflict Minerals | |
| Current | |
| Drift | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Inrush Current | |
| Leakage Current | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Ripple | |
| Ripple & Noise | |
| Standard Number | |
| Start-up Time | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Regulation | |
| Type | |
| Voltage |

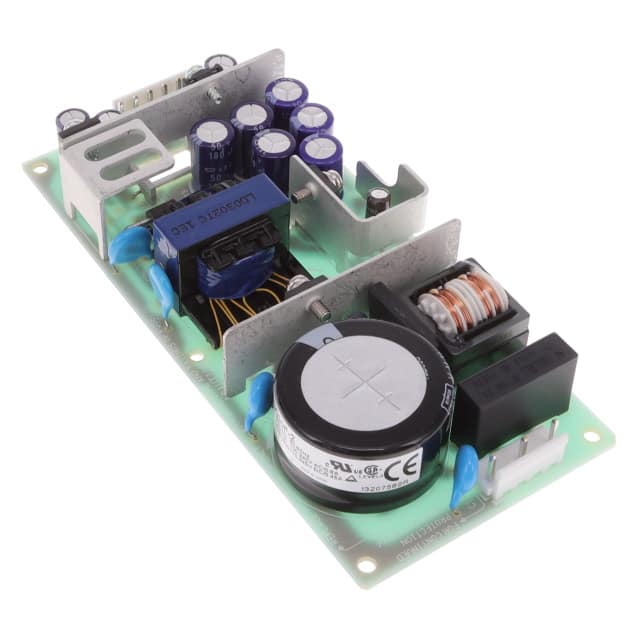

The Cosel LDC15F-2-SN is a compact AC/DC power supply designed for various applications requiring stable voltage conversion. It features a universal input voltage range of 85-264 VAC, making it suitable for global use. This model delivers a total power of 10W, with specific output voltages of +5V and +/-15V.
Key electrical specifications include an efficiency of 72% and an inrush current of 50A. The power supply is designed with built-in protection circuits for inrush current, overcurrent, and overvoltage. It also meets stringent safety agency approvals, including UL60950-1, CSA C22.2 No. 60950-1, EN60950-1, and EN50178, and complies with DEN-AN standards.
Designed with a PCB construction, the LDC15F-2-SN is intended for integration into electronic systems. It adheres to EMI standards such as FCC-B, VCCI-B, CISPR22-B, and EN55022-B, ensuring minimal electromagnetic interference. The product comes with a 2-year warranty and is RoHS compliant.
This AC/DC converter is suitable for applications requiring multiple voltage rails from a single input source. Its robust design and comprehensive safety certifications make it a reliable choice for industrial and commercial electronic equipment.
The input voltage range is 85-264 VAC or DC110-370V.
The LDC15F-2-SN provides +5V and +/-15V outputs.
The maximum output current for the +5V rail is 2.0A.
The efficiency is 72%.
The inrush current is 50A.
The leakage current is 0.75mA maximum.
The start-up time is 100ms maximum.
