| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

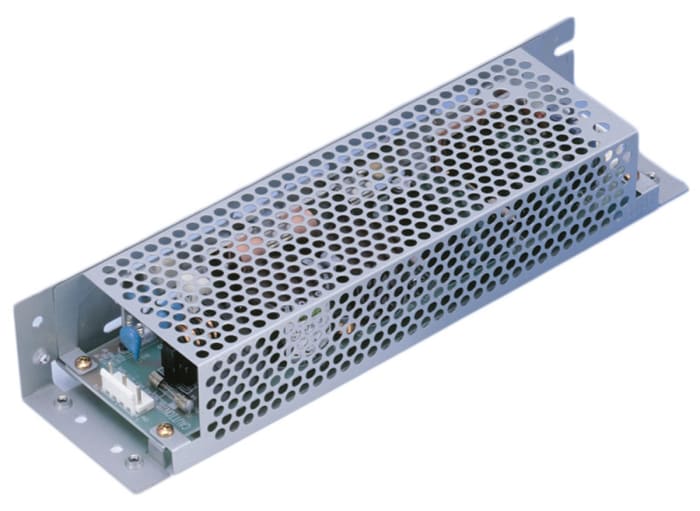

The Cosel LDA75F-9-SN is an enclosed switch mode power supply (SMPS) designed for AC/DC conversion. It delivers a stable 9V dc output with a maximum current of 8.5A, providing a total power output of 76.5W. This unit is suitable for ITE (Commercial) applications and features a universal input voltage range of 85-264V ac or 110-370V dc.
Designed for easy integration, the LDA75F-9-SN utilizes a chassis mount type and has dimensions of 252mm in length, 65mm in width, and 42mm in height. It operates efficiently with a stated efficiency of 79% and can function within an operating temperature range of -10°C to +60°C with derating. The power supply is built with features such as autoranging input and built-in overcurrent and overvoltage protection circuits.
This model complies with various safety standards, including UL60950-1, EN60950-1, EN50178, and CSA C22.2 No.60950-1, and carries approvals from cCSAus, CE, cURus, and TUV. It is also compliant with EMI standards FCC-B, CISPR22-B, EN55022-B, and VCCI-B.
9V dc.
8.5A.
76.5W.
85 to 264 V ac or 110 to 370 V dc.
-10°C to 60°C with derating.
Chassis mount.
cCSAus, CE, cURus, TUV to standard 60950-1.
