| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

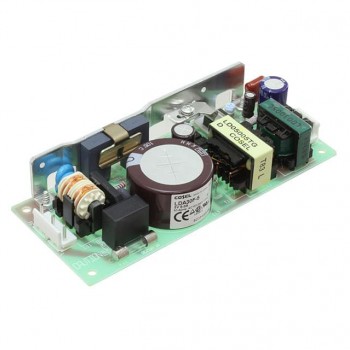

The Cosel LDA75F-5-SLY is an open frame AC/DC power supply designed for ITE (Commercial) applications. It offers a single 5V output with a maximum current of 15A, delivering a total power of 75W. The unit operates with a universal input voltage range of 85-264 VAC or 110-370 VDC and boasts an efficiency of 79%.
Key features include adjustable output and universal input capabilities. The power supply is designed for chassis mounting and has dimensions of 222.0mm x 55.0mm x 32.0mm. It is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1. The operating temperature range is -10°C to 60°C with derating.
This converter is suitable for various commercial applications requiring a reliable and efficient power source. Its open frame construction and chassis mount type facilitate integration into system designs.
The output voltage is 5V.
The maximum output current is 15A.
The power rating is 75W.
The input voltage range is 85 ~ 264 VAC, 110 ~ 370 VDC.
The operating temperature range is -10°C to 60°C with derating.
Key features include adjustable output and universal input.
It is approved by cCSAus, CE, cURus, and TUV.
