LDA75F-24-HR
Cosel
The Cosel LDA75F-24-HR is an open frame AC DC converter with a 24V output, delivering 77W of power. It features universal input voltage and 82% efficiency.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

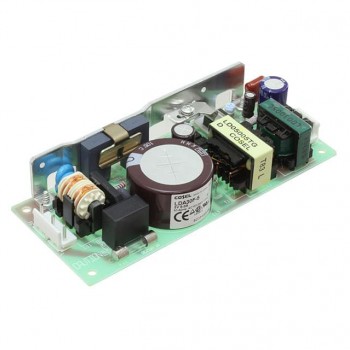

The Cosel LDA75F-24-RY is an open frame AC/DC power supply designed for ITE (Commercial) applications. It features a universal input voltage range of 85-264 VAC or 110-370 VDC, and provides a stable 24V output at a maximum current of 3.2A, totaling 77W of power. The converter boasts an efficiency of 82% and operates within a temperature range of -10°C to 60°C with derating.
Key features include adjustable output and remote On/Off functionality, enhancing its versatility in various designs. The unit is chassis mountable, with dimensions of 222.0mm x 55.0mm x 32.0mm. It is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1.
This power supply is suitable for integration into systems requiring reliable and efficient power conversion. Its open frame construction and chassis mount type facilitate easy installation in equipment. The universal input capability makes it adaptable to different power grids worldwide.
The output voltage is 24V.
The maximum output current is 3.2A.
The power rating is 77W.
The input voltage range is 85 ~ 264 VAC, 110 ~ 370 VDC.
The operating temperature range is -10°C to 60°C (With Derating).
Key features include adjustable output, remote On/Off, and universal input.
It is designed for chassis mounting.
