LDA75F-24-G
Cosel
The Cosel LDA75F-24-G is an open frame AC/DC converter with a power rating of 77W and an output current of 3.2A. It features universal input and chassis mount.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

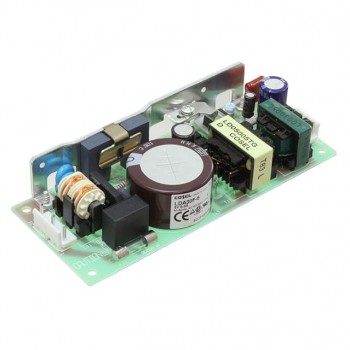

The Cosel LDA75F-24-LY is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 24V output with a maximum current of 3.2A, delivering up to 77W of power.
This converter operates with a wide input voltage range of 85-264 VAC or 110-370 VDC and boasts an efficiency of 82%. The operating temperature range is -10°C to 60°C with derating. Key features include adjustable output and universal input capabilities.
With dimensions of 222.0mm x 55.0mm x 32.0mm, it is designed for chassis mounting. The unit is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1.
Compliance includes RoHS3, MSL 1, and REACH Unaffected.
The output voltage is 24V.
The maximum output current is 3.2A.
The power rating is 77W.
The input voltage range is 85-264 VAC or 110-370 VDC.
The operating temperature range is -10°C to 60°C (With Derating).
It uses chassis mount.
Yes, it is RoHS3 Compliant.
