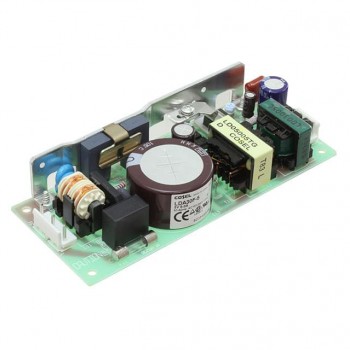

The Cosel LDA75F-18-S is an open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 18V output with a maximum current of 4.2A, providing a total power of 76W.
This converter operates with a wide input voltage range of 85-264 VAC or 110-370 VDC, offering flexibility for various power sources. It features adjustable output and universal input capabilities, enhancing its usability in diverse systems. The efficiency is rated at 81% and it operates within a temperature range of -10°C to 60°C with derating.
Designed for easy integration, the LDA75F-18-S utilizes a chassis mount type and comes in a box package. Its dimensions are 222.0mm x 55.0mm x 32.0mm (8.74" L x 2.17" W x 1.26" H). The unit is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1.
Key specifications include a single output, a maximum output current of 4.2A, and a power rating of 76W. The operating temperature range is -10°C to 60°C with derating.
The primary output voltage is 18V.
The maximum output current is 4.2A.
The converter has a power output of 76W.
The input voltage range is 85-264 VAC or 110-370 VDC.
The operating temperature range is -10°C to 60°C, with derating.
It is designed for chassis mounting.
It is approved by cCSAus, CE, cURus, and TUV.
