| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

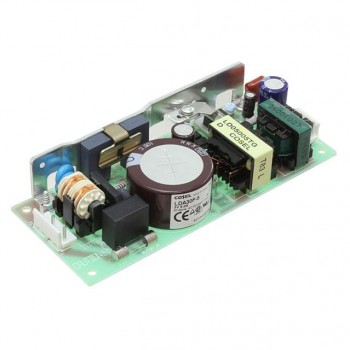

The Cosel LDA75F-12-SNCY is an AC/DC power supply designed for ITE (Commercial) applications. This enclosed converter operates with a universal input voltage range of 85-264 VAC or 110-370 VDC, providing a stable 12V output at a maximum current of 6.3A, for a total power output of 76W.
Key features include adjustable output and universal input capabilities, making it versatile for various system designs. The unit has an efficiency rating of 80% and operates within a temperature range of -10°C to 60°C with derating. Its dimensions are 252.0mm in length, 65.0mm in width, and 42.0mm in height.
Designed for easy integration, the LDA75F-12-SNCY utilizes a chassis mount type. It is approved by cCSAus, CE, cURus, and TUV, adhering to standard 60950-1. This power supply is suitable for applications requiring reliable power conversion in commercial environments.
The output voltage is 12V.
The maximum output current is 6.3A.
The power rating is 76W.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 60°C with derating.
It is a chassis mount type.
