| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

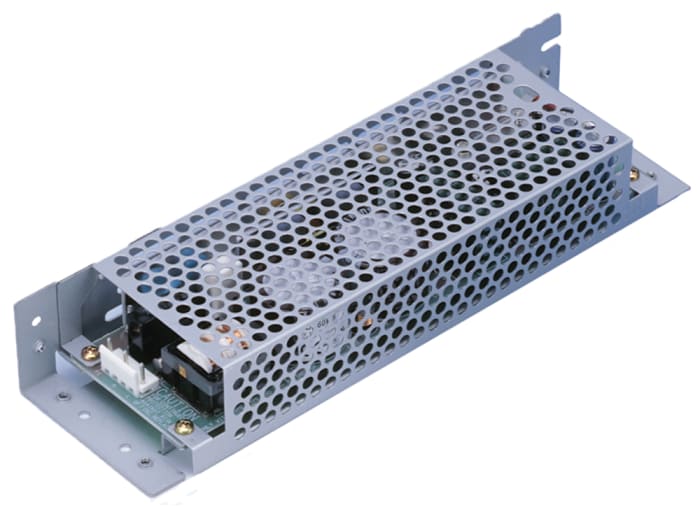

The Cosel LDA50F-9-SN is an enclosed AC/DC converter designed for various applications. It delivers a stable 9V DC output with a maximum current of 5.6A, providing a total power rating of 50W. This unit is suitable for ITE (Commercial) applications and features a universal input voltage range of 85 to 264V AC.
Key electrical specifications include an efficiency of 78% and a universal input that accepts both AC and DC voltages. The operating temperature range is -10°C to 60°C, with derating applied at higher temperatures. The converter is built to meet standard UL60950-1.
Mechanically, the LDA50F-9-SN is designed for chassis mounting, with dimensions of 225.0mm in length, 65.0mm in width, and 36.0mm in height. It offers adjustable output and universal input features, making it a versatile power solution. Compliance includes RoHS3, REACH Unaffected, and MSL 1.
85-264VAC (also 110-370VDC).
9V DC at 5.6A (50W).
-10°C to 60°C with derating.
Enclosed package with chassis mount.
225.0mm x 65.0mm x 36.0mm (8.86" x 2.56" x 1.42").
Yes, it features adjustable output.
It complies with standard 60950-1.
