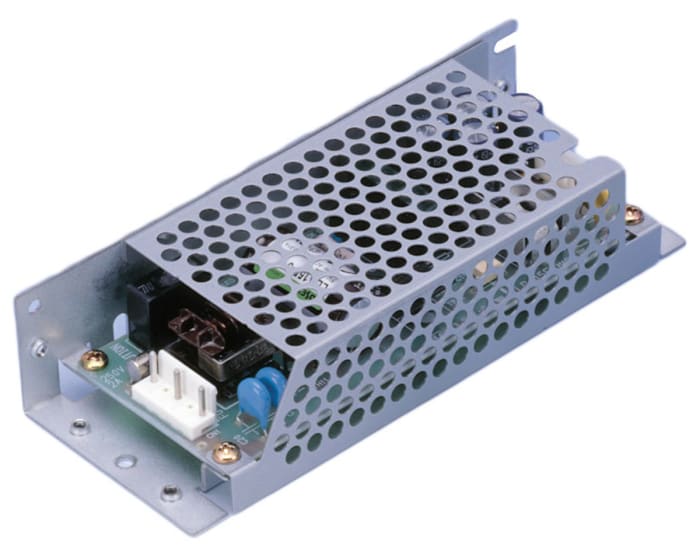

The Cosel LDA15F-5-SN is an enclosed AC/DC converter designed for commercial ITE applications. It provides a single regulated 5V DC output at 3A, with a total power rating of 15W. The converter accepts a wide universal input range of 85-264V AC or 110-370V DC, making it suitable for global use.
Key electrical specifications include an efficiency of 74% and an input-to-output isolation voltage of 3kV. The output is adjustable, offering flexibility for various load requirements. The unit is chassis-mountable and comes in a compact enclosed package measuring 145.0mm x 57.0mm x 32.0mm and weighing 95g.
The LDA15F-5-SN operates over a temperature range of -10°C to +60°C. It carries approvals from cCSAus, CE, cURus, and TUV, and complies with safety standard 60950-1. The adjustable output and universal input make it a versatile choice for powering industrial controls, test equipment, and other commercial electronics.
The output voltage is 5V DC and the output current is 3A, providing 15W of power.
The input voltage range is 85-264V AC or 110-370V DC.
The operating temperature range is -10°C to +60°C.
The mounting type is chassis mount and the package style is enclosed.
It is approved by cCSAus, CE, cURus, and TUV, and complies with standard 60950-1.
The efficiency is 74%.
The input-to-output isolation voltage is 3kV.
